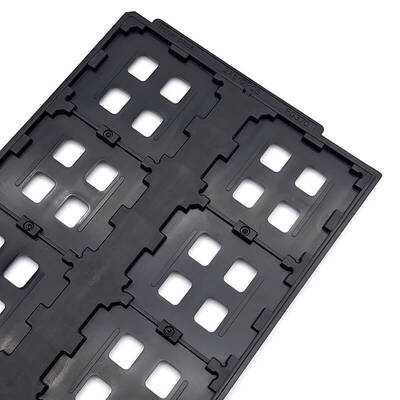

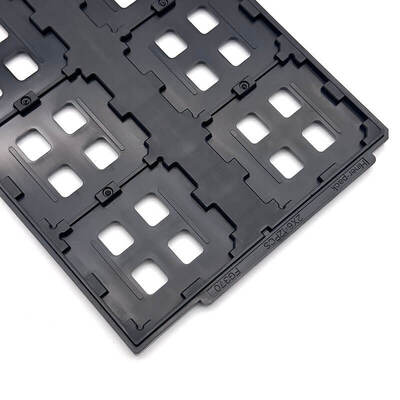

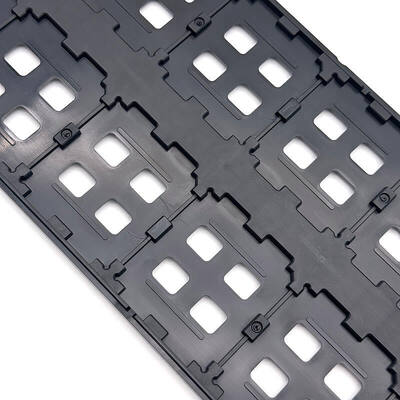

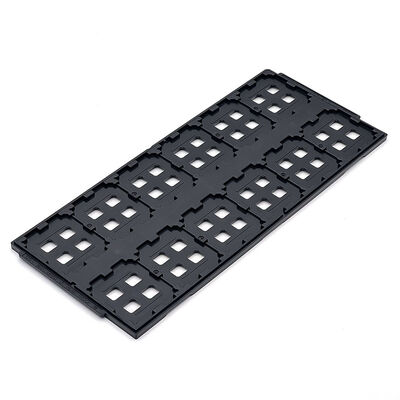

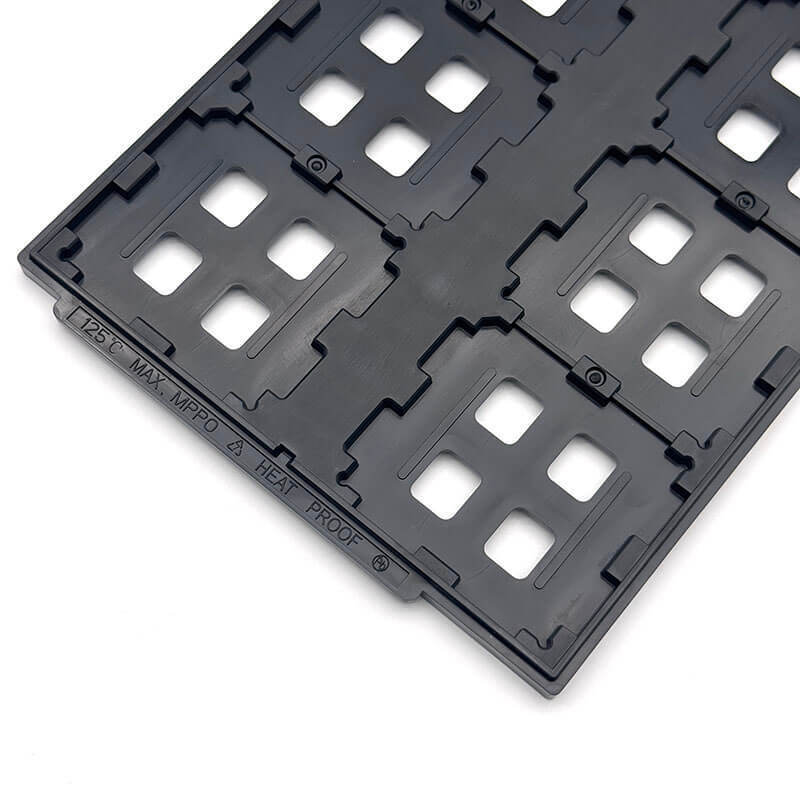

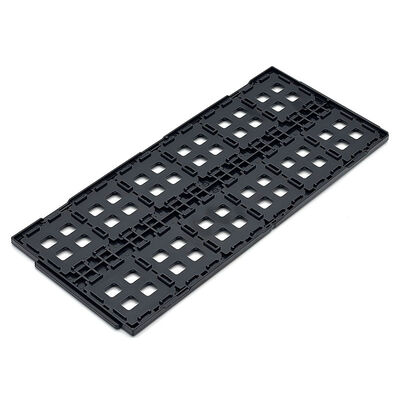

JEDEC IC trays protect wafers for clean production

Brand Name:	Hiner-pack
Model Number:	HN25020
MOQ:	500 pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	T/T
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS, ISO

Tray Weight:

Varies, Typically Up To 500 Grams Per Cavity

Color:

Black

Quality Assurance:

Delivery Guarantee, Reliable Quality

Cavity Size:

322.6×135.9×7.62 Mm

Incoterms:

EXW, FOB, CIF, DDU, DDP

Mold Type:

Injection

Reusable:

Yes

Tray Shape:

Rectangular

Clean Class:

General And Ultrasonic Cleaning

Ic Type:

BGA,QFP,QFN,LGA,PGA

Packing Level:

Transport Package

Flatness:

Less Than 0.76mm

Capacity:

2X6=12 PCS

Packaging Details:

CARTON, PALLET

Supply Ability:

2000PCS/Day

Product Description

JEDEC IC trays protect wafers for clean production.

JEDEC IC Tray is manufactured with MPPO material. It provides reliable protection for wafers against contamination and impact during production, handling and transfer. The tray complies with standard JEDEC specifications and helps maintain a clean production environment for semiconductor applications.

It is widely used in semiconductor packaging, testing, storage and transportation. It performs well in cleanroom conditions and works smoothly with automated production equipment to ensure wafer integrity.

Customization is a core service. We support tailored sizes, structures and designs to meet diverse production requirements and improve overall production efficiency.

Key Features/ Benefits

Strong durable structure
Effective dust prevention
Safeguard wafer packaging processes
Clean production support
Flexible customization

Specifications

Brand		Hiner-pack
Model		HN25020
Material		MPPO
Package Type		JEDEC
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		322.6×135.9×7.62 mm
Cavity Size		48×45×2.75 mm
Matrix QTY		2X6=12 PCS
Warpage		MAX 0.76mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

Widely used in wafer packaging, die sorting, semiconductor assembly and cleanroom processing. Perfect for high-precision production lines in semiconductor packaging and integrated circuit manufacturing.

Also applied in inter-plant wafer transportation, finished chip storage and logistics shipping. Serve IC packaging factories, semiconductor manufacturers and electronic component logistics providers.

Customized Services

Provide professional customization for JEDEC IC trays according to wafer size and production needs. Customize cavity shape, depth and arrangement to ensure perfect fit.

Select high-performance materials for anti-static, high temperature or cleanroom use. Support prototype verification and mass production. Offer full custom solutions for packaging and transportation.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Rich experience in JEDEC / IC / waffle pack trays
In-house mold design capability
Fast prototype development
Strict QC process
Stable supply for global semiconductor customers
