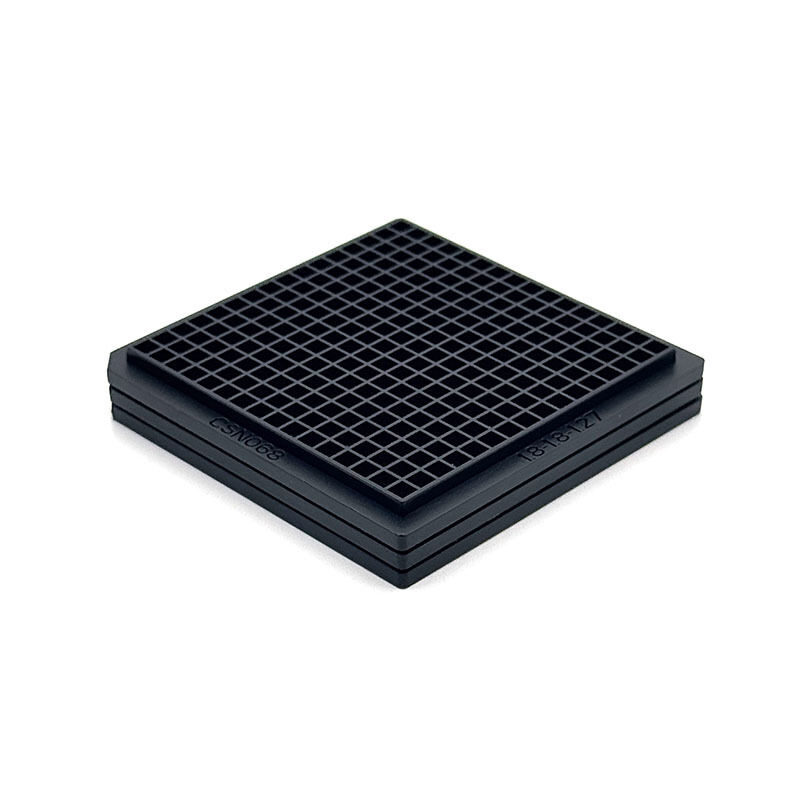

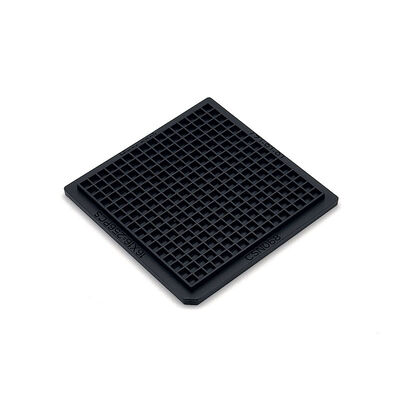

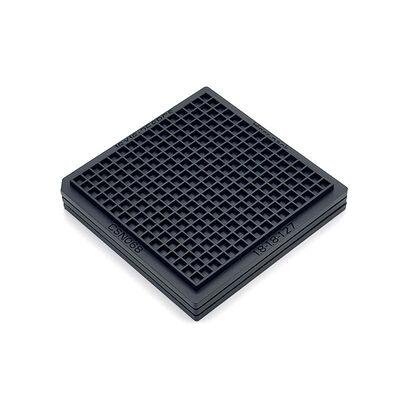

Durable Anti-Static Waffle Pack Trays for Fine Pitch ICs

Brand Name:	Hiner-pack
Model Number:	HN24198
MOQ:	500 pcs
Price:	$1.35~$2.68(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	T/T
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS, ISO

Tray Weight:

Varies, Typically Up To 500 Grams Per Cavity

Color:

Black

Quality Assurance:

Delivery Guarantee, Reliable Quality

Outline Line Size:

50.7×50.7×4 Mm

Cavity Size:

1.8x1.8x1.27 Mm

Incoterms:

EXW, FOB, CIF, DDU, DDP

Mold Type:

Injection

Reusable:

Yes

Tray Shape:

Rectangular

Clean Class:

General And Ultrasonic Cleaning

Ic Type:

BGA,QFP,QFN,LGA,PGA

Packing Level:

Transport Package

Warpage:

Warpage MAX 0.26mm

Capacity:

16x16=256 PCS

Packaging Details:

CARTON, PALLET

Supply Ability:

2000PCS/Day

Product Description

Durable Anti-Static Waffle Pack Trays for Fine Pitch ICs

Deliver precise grid-style waffle structure to securely hold fine pitch ICs, preventing component shifting and electrostatic damage during handling. Made of durable anti-static material to maintain stable performance in industrial settings, offering reliable protection for sensitive semiconductor devices.

Integrate smoothly with automated pick-and-place systems and clean manufacturing workflows, performing reliably in chip loading, transfer, and sorting procedures. Adapt flexibly to high-precision semiconductor production scenarios, boosting operational efficiency and component integrity.

Support full customization of cavity size, pitch, and layout to match unique fine pitch IC dimensions. Align with clean production standards, delivering tailored solutions that optimize packaging efficiency and safeguard delicate components throughout transit and long-term storage.

Key Features/ Benefits

Durable anti-static material
Offers stable cleanroom-grade contamination control
Stable component holding
Protects delicate fine pitch IC components efficiently
Support fully customized cavity sizes and layout designs
Precise waffle structure.

Specifications

Brand		Hiner-pack
Model		HN24198
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		50.7×50.7×4 mm
Cavity Size		1.8x1.8x1.27 mm
Matrix QTY		16x16=256 PCS
Warpage		MAX 0.26mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

Support advanced semiconductor packaging, fine pitch die sorting, device testing, and precision component kitting operations. Pair seamlessly with automated pick-and-place systems, ESD-controlled production lines, and clean manufacturing environments.

Also used for inter-plant component transfer, international shipping of sensitive fine pitch devices, and long-term inventory storage. Serve semiconductor fabs, advanced packaging facilities, and high-tech electronic component distributors.

Packaging & Shipping/ Services

Come in standard anti-static packaging to ensure product integrity during transit. Each tray is wrapped in protective film and placed in rigid cartons to prevent deformation and scratches.

Support bulk shipping via sea, air or express, with secure stacking to avoid damage during long-distance transportation. Ensure products arrive in good condition for immediate use in production.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Rich experience in JEDEC / IC / waffle pack trays
In-house mold design capability
Fast prototype development
Strict QC process
Stable supply for global semiconductor customers
