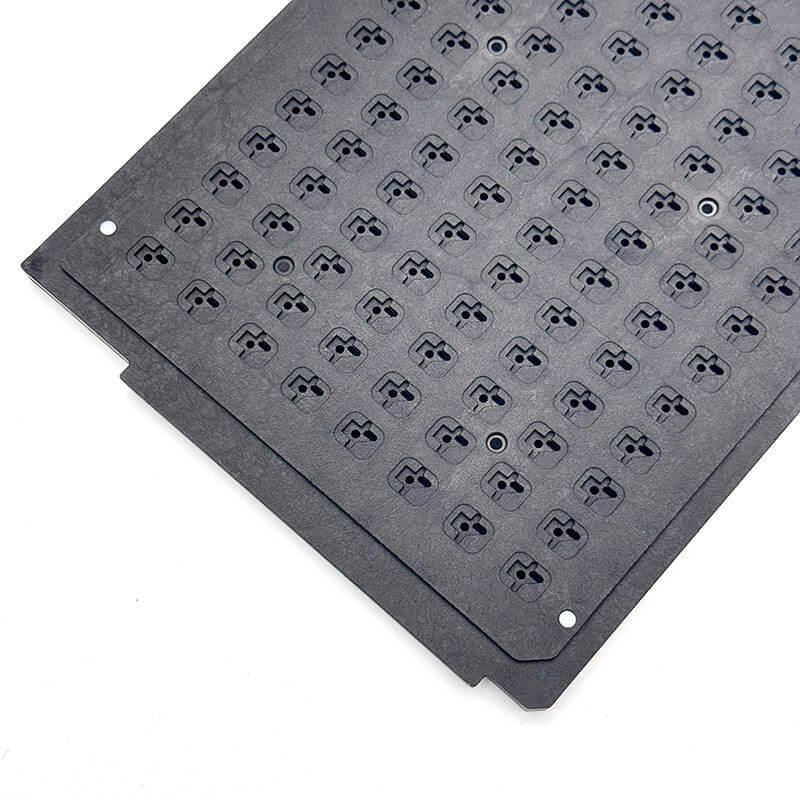

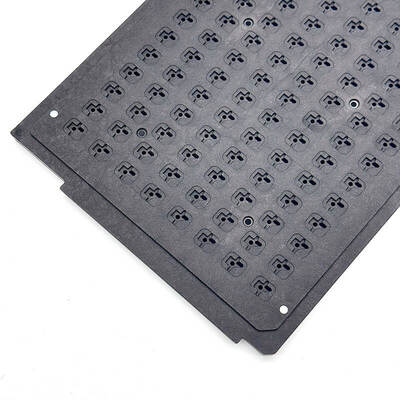

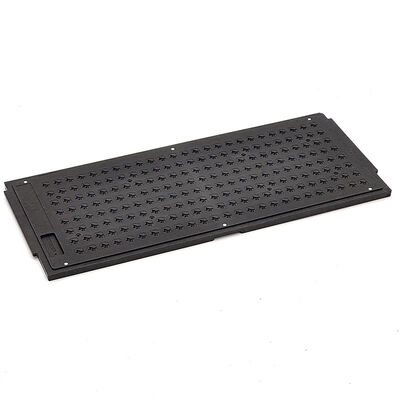

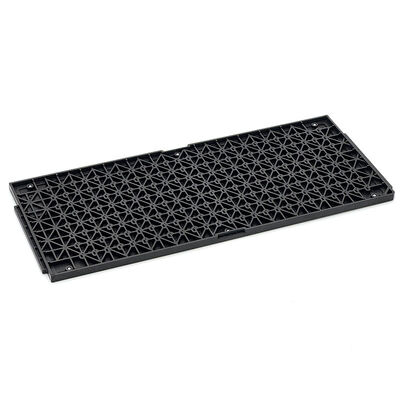

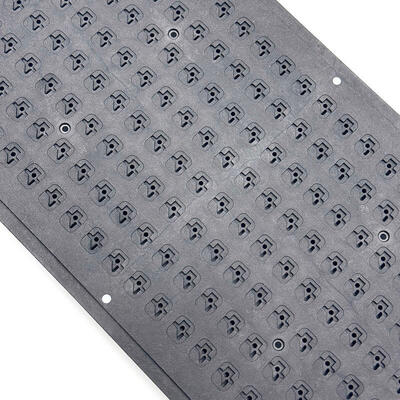

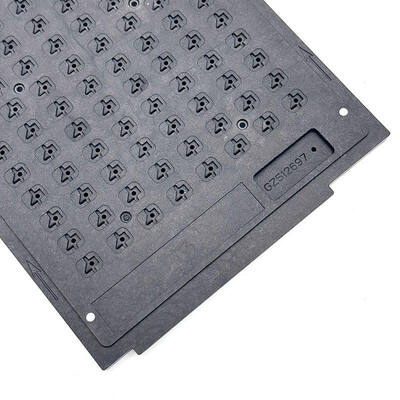

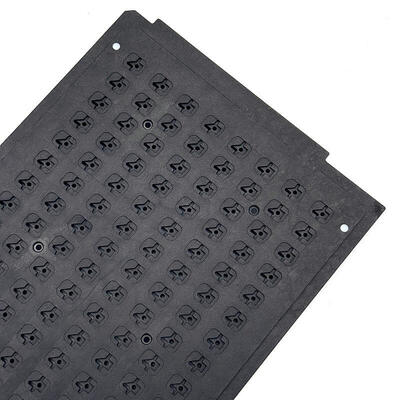

Durable JEDEC IC Trays Reduce Dust And Protect Components In Packaging And Assembly

Brand Name:	Hiner-pack
Model Number:	HN25047
MOQ:	500 pcs
Price:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	T/T
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS, ISO

Tray Weight:

Varies, Typically Up To 500 Grams Per Cavity

Color:

Black

Quality Assurance:

Delivery Guarantee, Reliable Quality

Cavity Size:

322.6×135.9×7.62 Mm

Incoterms:

EXW, FOB, CIF, DDU, DDP

Mold Type:

Injection

Reusable:

Yes

Tray Shape:

Rectangular

Clean Class:

General And Ultrasonic Cleaning

Ic Type:

BGA,QFP,QFN,LGA,PGA

Packing Level:

Transport Package

Flatness:

Less Than 0.76mm

Capacity:

10x23=230 PCS

Packaging Details:

CARTON, PALLET

Supply Ability:

2000PCS/Day

Product Description

Durable JEDEC IC Trays Reduce Dust And Protect Components In Packaging And Assembly

Durable JEDEC IC Tray keeps semiconductor components clean by reducing dust buildup during packaging and assembly. Sturdy build withstands frequent handling, shielding parts from scratches and impacts.

Durable JEDEC IC Tray follows JEDEC standards, ensuring smooth integration with automated production lines. It lowers component damage rates, supporting consistent quality across manufacturing stages.

Durable JEDEC IC Tray fits diverse component sizes with customizable cavities. Whether for high-volume runs or precision assembly, it delivers reliable, dust-free protection for sensitive electronic parts.

Key Features/ Benefits

Deliver durable construction.
Dust reduction and anti-contamination
Customizable cavity layouts
Secure component retention
JEDEC standard compliance

Specifications

Brand		Hiner-pack
Model		HN25047
Material		MPPO
Package Type		JEDEC
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		322.6×135.9×7.62 mm
Cavity Size		7.5×6.5×2.05 mm
Matrix QTY		10x23=230 PCS
Warpage		MAX 0.76mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

Durable JEDEC IC Tray works perfectly for semiconductor packaging lines, IC assembly facilities, and clean room manufacturing. It prevents dust contamination, preserving component purity during high-precision production.

Durable JEDEC IC Tray also supports in-process handling and storage, offering stable protection between production steps. Custom cavities hold components firmly, minimizing shifting and damage during automated assembly operations.

Packaging & Shipping/ Services

Durable JEDEC IC Tray offers full customization to match unique production requirements. Adjust cavity size, pitch, and layout to fit specific component dimensions and automated line workflows.

Engineering team collaborates closely to develop tailored tray solutions, from prototype to mass production. Add custom markings, mounting holes, or anti-slip features to optimize dust control and handling efficiency in packaging and assembly.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Rich experience in JEDEC / IC / Waffle Pack Trays
In-house mold design capability
Fast prototype development
Strict QC process
Stable supply for global semiconductor customers
