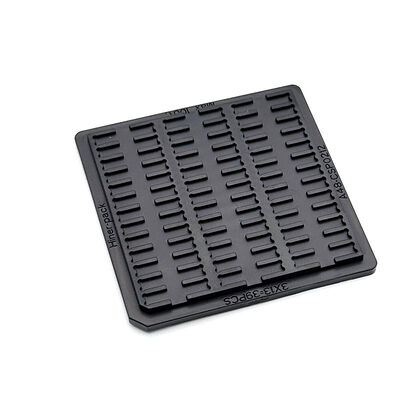

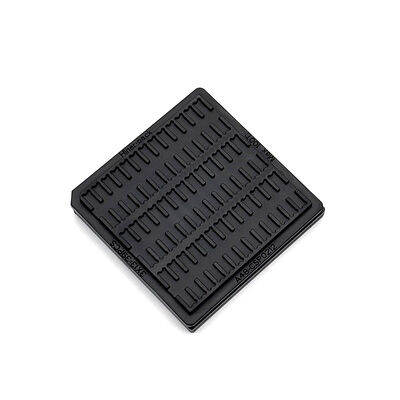

Reusable ESD-Safe Waffle Pack Chip Trays with Customizable Cavity Size for Semiconductor IC Protection

Brand Name:	Hiner-pack
Model Number:	HN25026
MOQ:	500 pcs
Price:	$1.35~$2.68(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	T/T
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS, ISO

Tray Weight:

Varies, Typically Up To 500 Grams Per Cavity

Color:

Black

Quality Assurance:

Delivery Guarantee, Reliable Quality

Outline Line Size:

50.8x50.8x3.94 Mm

Cavity Size:

12.12X2.04X0.86 Mm

Incoterms:

EXW, FOB, CIF, DDU, DDP

Mold Type:

Injection

Reusable:

Yes

Tray Shape:

Rectangular

Clean Class:

General And Ultrasonic Cleaning

Ic Type:

BGA,QFP,QFN,LGA,PGA

Packing Level:

Transport Package

Warpage:

Warpage MAX 0.22mm

Capacity:

3X13=39 PCS

Packaging Details:

CARTON, PALLET

Supply Ability:

2000PCS/Day

Highlight:

Waffle Pack Chip Trays for semiconductor IC testing

Waffle Pack Chip Trays for storage protection

Semiconductor IC handling waffle pack trays

Product Description

Waffle Pack Chip Trays for Semiconductor IC Testing Handling and Storage Protection

Separate individual IC chips inside special slot structures. Prevent mutual friction and collision during frequent operational movements. Maintain stable performance under long‑term cyclic usage within semiconductor production lines.

Isolate chips from external contact to cut surface‑damage risks. Fit continuous test workflows without extra adjustment work. Hold components steady across testing, sorting and warehouse storage cycles.

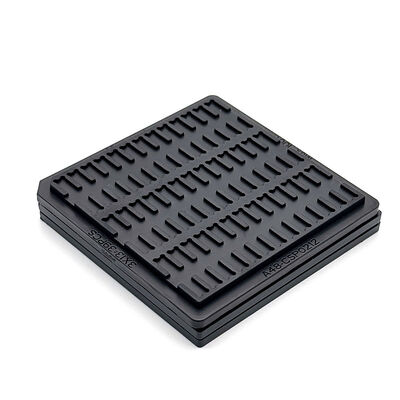

Support neat stacking to make full use of available factory space. Keep original slot shape under regular stacking pressure. Meet high‑standard storage and handling demands for precision semiconductor components.

Key Features/ Benefits

Stable conductive ESD performance
Guard chips against surface damage
Adapt to testing & long‑time storage
Support custom specifications
The factory has ISO certification, and the products comply with the RoHS standard.

Specifications

Brand		Hiner-pack
Model		HN25026
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		50.8x50.8x3.94 mm
Cavity Size		12.12X2.04X0.86 mm
Matrix QTY		3X13=39 PCS
Warpage		MAX 0.22 mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

Handle semiconductor IC testing, component sorting and short‑term stock keeping work. Isolate precision chips while carrying out inspection and in‑plant circulation. Lower scrap rate caused by chip‑to‑chip rubbing and impact.

Work within semiconductor test workshops and component inventory areas. Offer reliable holding solution for diverse IC parts in mass‑batch production cycles.

Customized Services

Customize slot dimensions, cavity layouts and outer overall sizes to match various IC chip outlines. Modify material hardness and anti‑static performance to satisfy unique production conditions. Deliver pre‑production samples for performance verification. Accept bulk‑order customization to satisfy diversified semiconductor component storage and handling requirements.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Rich experience in JEDEC / IC / Waffle Pack Trays
In-house mold design capability
Fast prototype development
Strict QC process
Stable supply for global semiconductor customers
