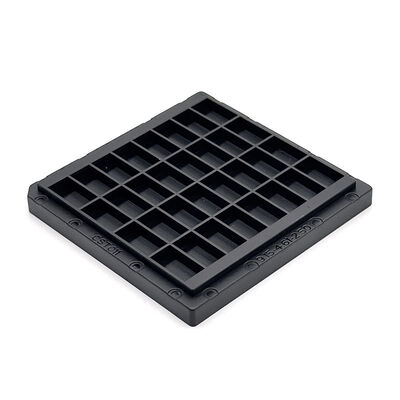

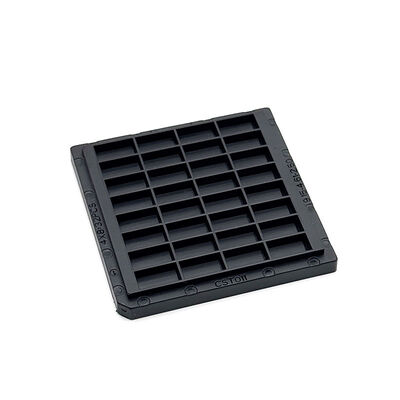

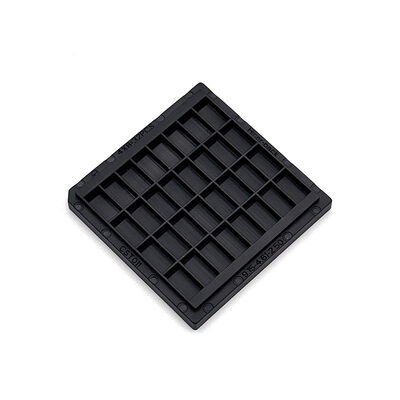

Anti-Static Reusable Cleanroom-Grade Waffle Pack Chip Trays for Semiconductor IC Protection

Brand Name:	Hiner-pack
Model Number:	HN25028
MOQ:	500 pcs
Price:	$1.35~$2.68(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	T/T
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS, ISO

Tray Weight:

Varies, Typically Up To 500 Grams Per Cavity

Color:

Black

Quality Assurance:

Delivery Guarantee, Reliable Quality

Outline Line Size:

50.7×50.7×6 Mm

Cavity Size:

8.95x4.41x1.7 Mm

Incoterms:

EXW, FOB, CIF, DDU, DDP

Mold Type:

Injection

Reusable:

Yes

Tray Shape:

Rectangular

Clean Class:

General And Ultrasonic Cleaning

Ic Type:

BGA,QFP,QFN,LGA,PGA

Packing Level:

Transport Package

Warpage:

Warpage MAX 0.24mm

Capacity:

4X8=32 PCS

Packaging Details:

CARTON, PALLET

Supply Ability:

2000PCS/Day

Highlight:

Anti-static waffle pack chip trays

ESD protection chip trays

Waffle pack trays against contamination

Product Description

Anti‑Static Waffle Pack Chip Trays Against ESD Damage and Contamination

Secure single chips within separate square cavities. Keep chips apart to eliminate scraping damage when stacked or shifted. Keep rigid structural shape over repeated handling cycles.

Offer stable holding during workshop sorting inspection and stock management. Prevent chips from sliding out when moved between work stations. Fit continuous day‑to‑day semiconductor production workflows.

Allow stable multi‑layer stacking to conserve valuable workshop storage space. Keep each component fixed inside respective cavity positions. Meet strict holding requirements for fragile semiconductor IC parts.

Key Features/ Benefits

Anti-static & dust-proof design for safe chip handling
Offers stable cleanroom-grade contamination control
Adapt to sorting inspection storage tasks
Durable for repeated workshop usage
Divided square cavity isolates each chip

Specifications

Brand		Hiner-pack
Model		HN25028
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
50.7×50.7×6 mm		50.7×50.7×6 mm
Cavity Size		8.95x4.41x1.7 mm
Matrix QTY		4X8=32 PCS
Warpage		MAX 0.24mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

Hold semiconductor IC units during internal workshop sorting and visual inspection. Keep fragile chips safe while transferring between different production stations. Reduce defective items caused by friction and position shifting.

Suit electronics production lines and component warehouse areas. Serve as practical holding solution for large‑batch semiconductor component daily processing.

Packaging & Shipping/ Services

Pack goods with moisture‑proof bags then place into reinforced export cartons. Add cushion materials against impact in transit. Complete visual check before packing.
Arrange shipment per agreed trade terms. Provide full set of shipping documents once goods depart and keep you posted on shipment status.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Rich experience in JEDEC / IC / waffle pack trays
In-house mold design capability
Fast prototype development
Strict QC process
Stable supply for global semiconductor customers
