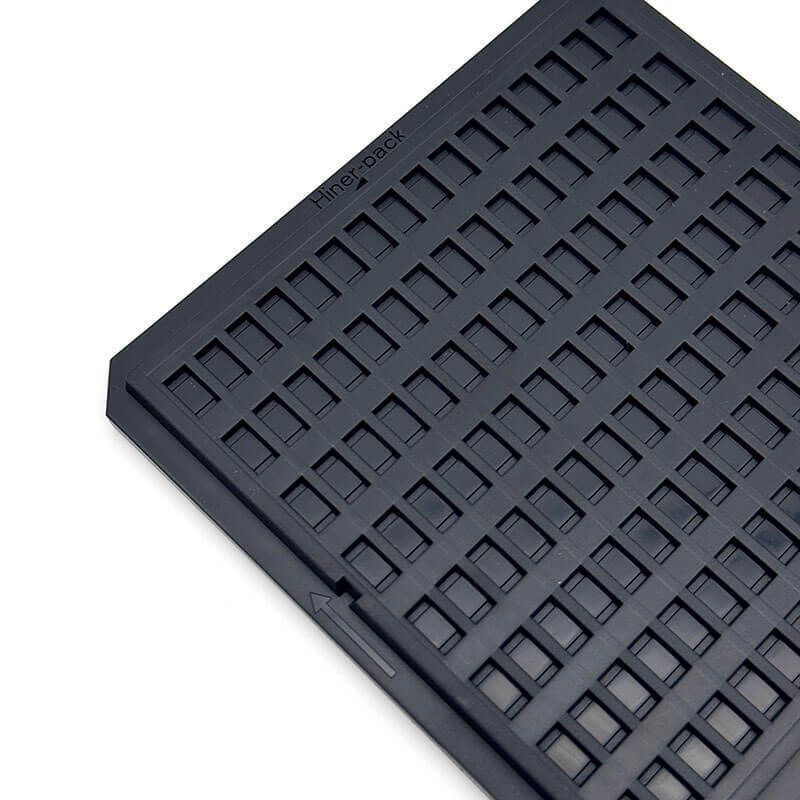

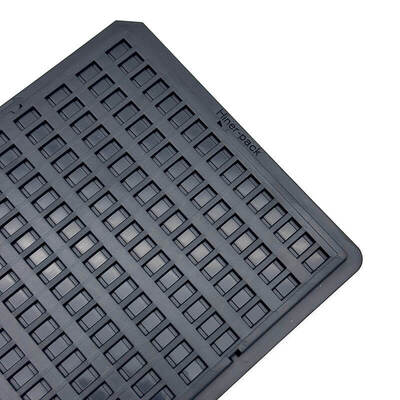

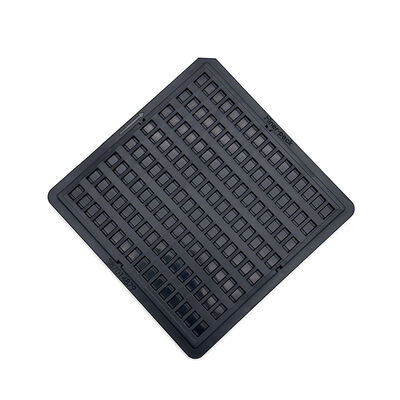

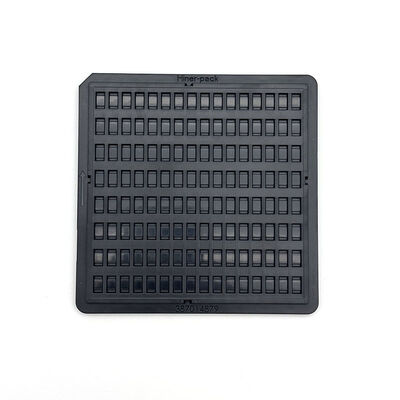

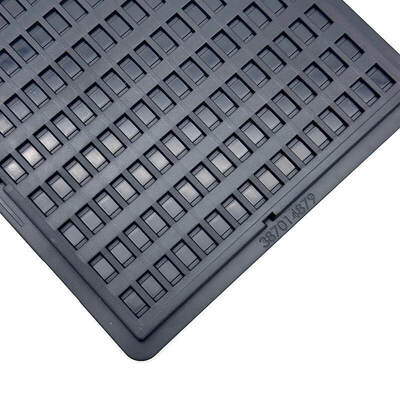

PC Anti Static Waffle Pack Chip Tray for Semiconductor Storage

Brand Name:	Hiner-pack
Model Number:	HN25197
MOQ:	1000
Price:	$1.35~$2.68(Prices Are Determined According To Different Incoterms And Quantities）
Payment Terms:	T/T
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS, ISO

Tray Weight:

Varies, Typically Up To 500 Grams Per Cavity

Color:

Black

Quality Assurance:

Delivery Guarantee, Reliable Quality

Outline Line Size:

101.6×101.6×7.28 Mm

Cavity Size:

3.28×6.64×1.28 Mm

Incoterms:

EXW, FOB, CIF, DDU, DDP

Mold Type:

Injection

Reusable:

Yes

Tray Shape:

Rectangular

Clean Class:

General And Ultrasonic Cleaning

Ic Type:

BGA,QFP,QFN,LGA,PGA

Packing Level:

Transport Package

Warpage:

Warpage MAX 0.22mm

Capacity:

8×16=128 PCS

Packaging Details:

CARTON, PALLET

Supply Ability:

2000PCS/Day

Product Description

PC Anti Static Waffle Pack Chip Tray for Semiconductor Storage

Fabricated from high-performance rigid PC material, these waffle pack IC trays deliver stable ESD protection for fragile semiconductor chips. Precision cavity layout keeps chips securely positioned and reduces scratches and collision risks during handling. Multiple thickness grades are available to fit different operating conditions.

These trays fit perfectly into ESD-controlled workshops and automatic production lines. They support high-precision chip processing, component sorting, device testing and internal factory transfer. Reliable performance makes them a common choice for IC packaging factories and electronic component suppliers.

Custom modifications are available to meet unique project needs. Cavity size, spacing, layout and outer dimensions can be adjusted according to chip specifications and automation equipment. Tailored designs help optimize packaging efficiency and keep chips safe throughout storage and transit.

Key Features/ Benefits

Precision cavity layout
Durable construction
Secure chip holding
Durable rigid PC construction for long-term repeated stacking and circulation
The factory has ISO certification, and the products comply with the RoHS standard.

Specifications

Brand		Hiner-pack
Model		HN25197
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		101.6×101.6×7.28 mm
Cavity Size		3.28×6.64×1.28 mm
Matrix QTY		8×16=128 PCS
Warpage		MAX 0.22mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

Suitable for high-precision chip processing, component sorting, electrical device testing and small semiconductor device assembly. Work well in automatic production lines and strict static-controlled workshops.

Ideal for factory internal transportation, work-in-progress storage and finished component stocking. Widely adopted by chip manufacturers, IC packaging plants and electronic component suppliers.

Customized Services

Provide fully customized solutions for PC ESD waffle pack IC trays. Adjust cavity size, spacing, layout, tray thickness and outer dimensions to fit diverse chip dimensions and special handling requirements. Support design adjustment according to customer drawings and automation equipment specifications.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Rich experience in JEDEC / IC / Waffle pack trays
In-house mold design capability
Fast prototype development
Strict QC process
Stable supply for global semiconductor customers
