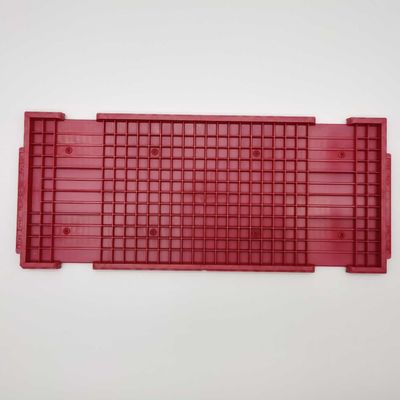

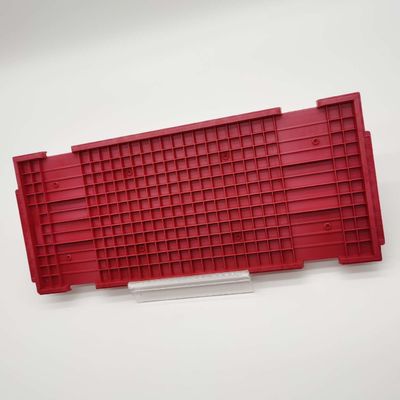

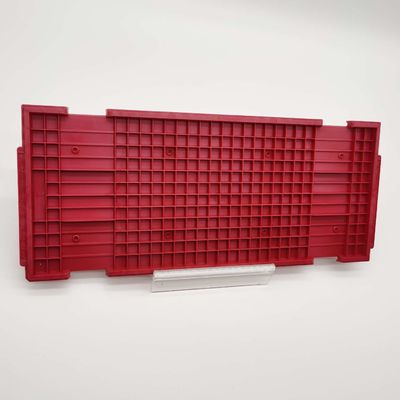

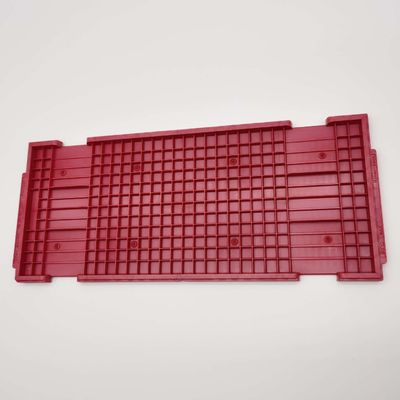

ABS Standard Red Jedec IC Tray Cover Anti Static ESD Trays

ABS Standard Red Jedec IC Tray Cover Anti Static ESD Trays

Brand Name:	Hiner-pack
Model Number:	HN2096
MOQ:	1000 pcs
Price:	$1.35~$2.38(Prices are determined according to different incoterms and quantities）
Payment Terms:	T/T
Supply Ability:	The capacity is between 2500PCS~3000PCS/per day

Detail Information

Product Description

Detail Information

Place of Origin:

Made In China

Certification:

ISO 9001 ROHS SGS

Material:

ABS

Color:

Red

Temperature:

80°C

Property:

ESD

Surface Resistance:

1.0x10E4~1.0x10E11Ω

Flatness:

Less Than 0.76mm

Clean Class:

General And Ultrasonic Cleaning

Incoterms:

EXW,FOB,CIF,DDU,DDP

Customized Service:

Support Standard And Non-standard,precision Machining

Injection Mold:

Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.)

Packaging Details:

80~100pcs/per carton, Weight about 12~16kg/per carton, Carton size is 35*30*30mm

Supply Ability:

The capacity is between 2500PCS~3000PCS/per day

Highlight:

Red Jedec IC Trays

PCB Jedec IC Trays

esd pcb tray

Product Description

ABS Standard Red Jedec IC Tray Cover Anti Static ESD Trays

ABS Standard Anti-Static JEDEC Tray Cover Is Compatible With Every Standard Tray

The Jedec Matrix Tray Cover for the Jedec Outline Matrix Trays fits the top of your TRAY for additional protection against damage and contamination. It's also made of sturdy plastic and has the same anti-static feature, protecting your parts from damage and dirt while staying up to 80 degrees

The IC Matrix Tray Cover provides additional protection for your parts as needed.IC matrix trays have traditionally been very open in design, providing good airflow during baking while reducing tray weight and ultimately cost. Antistatic matrix tray cover prevents accidental contact with parts and protects IC and other sensitive components from dust and debris.

Technical Parameters:

Brand	Hiner-pack	Outline Line Size	322.6135.97.62mm
Model	HN 2096	Package Type	N/A
Cavity Size	N/A	Matrix QTY	N/A
Material	ABS	Flatness	MAX 0.76mm
Color	Red	Service	Accept OEM,ODM
Resistance	1.0x10e4-1.0x10e11Ω	Certificate	ROHS

Reference to the temperature resistance of different materials:

Material	Bake Temperature	Surface Resistance
PPE	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Carbon Fiber	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Carbon Powder	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
MPPO+Glass Fiber	Bake 125°C~Max 150°C	1.010E4Ω~1.010E11Ω
PEI+Carbon Fiber	Max 180°C	1.010E4Ω~1.010E11Ω
IDP Color	85°C	1.010E6Ω~1.010E10Ω
Color, temperature and other special requirements can be customized

Application:

Package IC, PCBA, module component, electronic component, and optical device.

ABS Standard Red Jedec IC Tray Cover Anti Static ESD Trays 0

FAQ:

1. How can I get a quotation?
Reply: Please provide the details of your requirements as clearly as possible. So we can send you the offer for the first time.
For purchasing or further discussion, it is better to contact us via Skype / Email / Phone / WhatsApp, in case of any delays.

2. How long will it take to get a response?
Reply: We will reply to you within 24 hours of the working day.

3. What kind of service do we provide?
Reply: We can design IC Tray drawings in advance based on your clear description of the IC or component. Provide one-stop service from design to packaging and shipping.
4. What are your terms of delivery?
Reply: We accept EXW, FOB, CIF, DDU, DDP, etc. You can choose the one that is the most convenient or cost-effective for you.

5. How to guarantee quality?
Reply: Our samples through strict testing, and the finished products comply with the international JEDEC standards, to ensure a 100% qualified rate.

ABS Standard Red Jedec IC Tray Cover Anti Static ESD Trays 1
