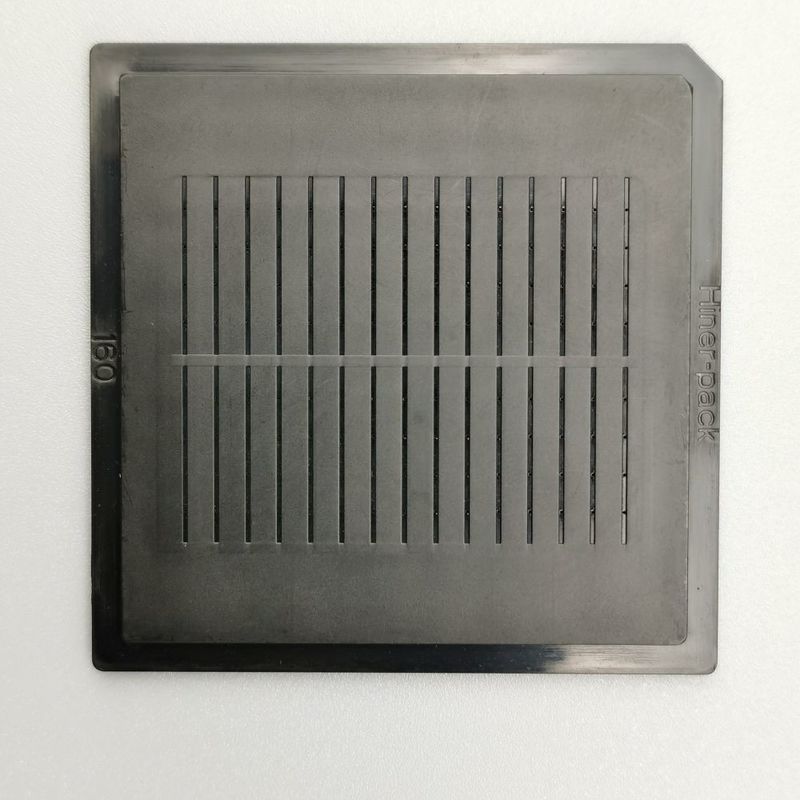

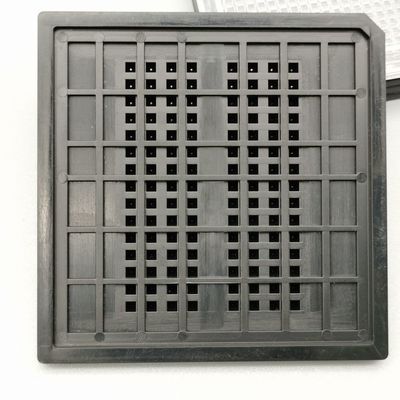

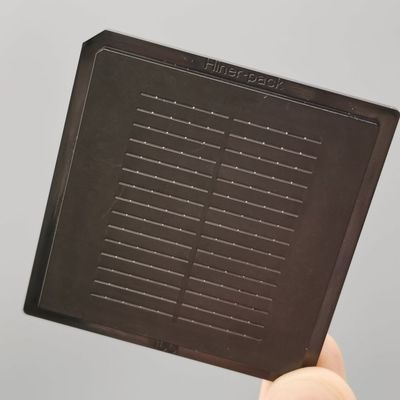

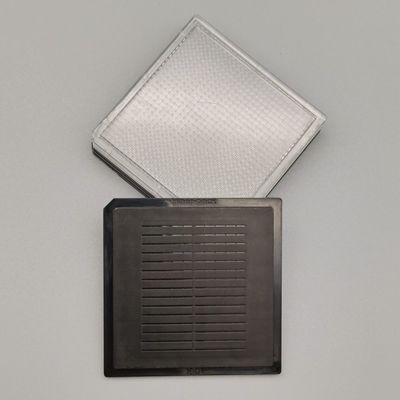

MPPO Plastic Waffle box bare Die Trays For Electronic Micro Bar

MPPO Plastic Waffle box bare Die Trays For Electronic Micro Bar
MPPO Plastic Waffle box bare Die Trays For Electronic Micro Bar MPPO Plastic Waffle box bare Die Trays For Electronic Micro Bar MPPO Plastic Waffle box bare Die Trays For Electronic Micro Bar MPPO Plastic Waffle box bare Die Trays For Electronic Micro Bar

Large Image :  MPPO Plastic Waffle box bare Die Trays For Electronic Micro Bar

Product Details:
Place of Origin: Made In China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN21018
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: $0.35~$0.85(Prices are determined according to different incoterms and quantities)
Packaging Details: It depends on the QTY of order and size of product
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 4000PCS~5000PCS/per day

MPPO Plastic Waffle box bare Die Trays For Electronic Micro Bar

Description
Material: ABS.PC.PPE.MPPO...etc Color: Black.Red.Yellow.Green.White..etc
Property: ESD,Non-ESD Design: Standard And Non-standard
Size: All Kinds Of Surface Resistance: 1.0x10E4~1.0x10E11Ω
Clean Class: General And Ultrasonic Cleaning Incoterms: EXW,FOB,CIF,DDU,DDP
Injection Mold: Lead Time 20~25Days,Mold Life Span: 30~450,000 Times Molding Method: Injection Moulding
High Light:

MPPO Bare Die Trays

,

PCBA Bare Die Trays

,

PCBA Trays

MPPO Plastic Bare Die Trays For Electronic Micro Bar



Factory Customized High Temperature Bare Die Tray For Electronic Micro Bar





What is an ESD tray?

ESD Trays are stock and include anti-static and conductive options. ESD-Safe Trays are used for packaging, shipping, and storage of small electronic parts, circuit boards, pcb, pcba, & electronic components.



The anti-static tray is made of special high-temperature resistant plastic by injection molding process, and the resistance value of the material surface is according to international standard.
It also can eliminate product static electricity, a large number of electronic devices and product production process of turnover loading, packaging, storage and transportation. In the industry, it is also known as the conductive electrostatic tray, which is suitable for the storage of precision electronic components. According to the requirements of customers' electronic components, there are different requirements for the size.



Chip tray is a carrier for bare dies used for the transportation and handling of a small batch of dies. A waffle pack is typically a plastic tray with pockets sized up for a particular die size.




Our Service


1. We have sample stock, also can help the client to choose which type is suitable for them.
2. We will reply you in any time if you have questions.
3. Choose suitable product for clients according to clients' requirement.
4.After mold customization, free samples will be provided until the customer tests OK, so as to remove the quality concerns of customers before quantity



Advantages



1. Suitable for components or devices daily turnover or long-distance freight.
2. Can be stacked more layers;
3. Can be washed at high temperature;
4. Plastic waterproof, moisture-proof, improve the storage time of components;
5. No extrusion and breakage, Better protection components;
6. Reusable, quality assurance.



Outline Size Material Surface Resistance Service Flatness Color
2" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.2mm Customizable
3" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.25mm Customizable
4" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.3mm Customizable
Custom size ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM TBC Customizable
Provide professional design and packaging for your products



Outline Line Size 50.7*50.7*4mm
Model HN21018
Cavity Size 14*0.21*0.1mm
Material PC
Color Black
Resistance 1.0x10e4-1.0x10e11Ω
Brand Hiner-pack
Package Type IC Parts
Matrix QTY 15*2=30PCS
Flatness MAX 0.3mm
Service Accept OEM,ODM
Certificate ROHS



Application



IC packaging delivery systems for protecting and transporting bare die, CSP, opto electronics, and other microelectronic devices




Packaging Details:Packing according to customer's specified size

MPPO Plastic Waffle box bare Die Trays For Electronic Micro Bar 0

FAQ



Q1: Are You Manufacturer or Trade Company?

We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.

Q2: What is the material of your product?

ABS.PC.PPE.MPPO.PEI.HIPS...etc

Q3: Can you help with the design?

Yes, we can accept your customization and do the packaging for you according to your requirement.

Q4: How can I get the quotation of the custom products ?

Let us know the size of your IC or component thickness,and then we can make a quotation for you.

Q5: Can I get some samples before making a bulk order?

Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.

Q6: Could you put my logo in our product?
Yes, we can put your logo in our product, show us your logo firstly please.

Q7: When can we get the samples?
We can send you them right now if you are interested in something we have stock, and customize

the project depending on the specific time

MPPO Plastic Waffle box bare Die Trays For Electronic Micro Bar 1
