Product Details:
|
| Material: | ABS | Color: | Black |
|---|---|---|---|
| Property: | ESD | Design: | Non-standard |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Clean Class: | General And Ultrasonic Cleaning |
| Injection Mold: | Lead Time 20~25Days,Mold Life Span: 30~450,000 Times | Molding Method: | Injection Moulding |
| High Light: | Anti Static IC Chip Tray,ESD IC Tray,0.3mm Anti Static tray |
||

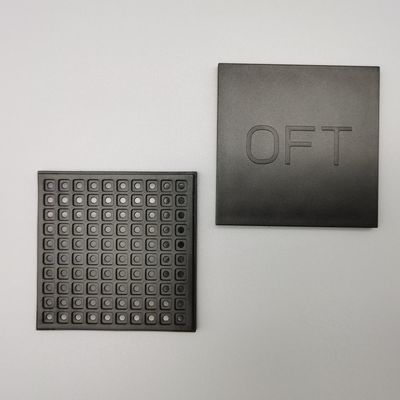

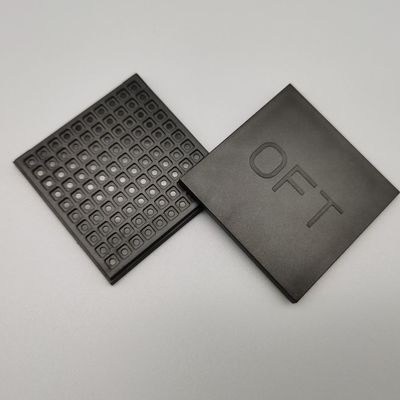

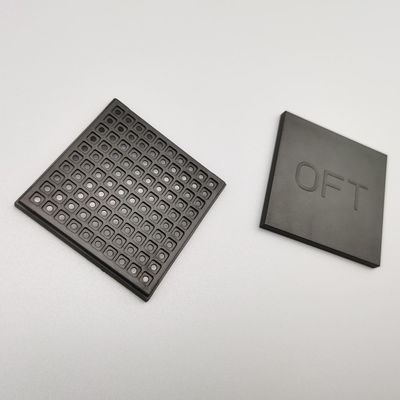

Black ESD Anti Static IC Chip Tray High Temperature Resistance For Loading Sapphire
Anti-Static IC Tray And Cover Specially Designed For Loading Sapphire
Providing a variety of packaging IC design solutions based on your chip, the 100% custom tray is not only suitable for storing IC but also better protect the chip storage.We have designed a lot of packaging way,We can provide custom service for all packaging methods of chip tray.
Waffle pack has many applications including the packaging of die, die attach preforms and bond pads.
As the tray in the field of optical application, more and more customers in order to protect components or optical devices, are willing to choose injection molding tray for packaging solution, because the tray can carrier component also provides comprehensive protection to transit and transport provides great convenience, all kinds of specifications and various color can be realized,Provide one-stop service from design to production to packaging.
Advantages
1. Light weight, saving transportation and packaging costs;
2. Size specification, compatible in any 2 ", 3 "or 4" Waffle Pack Feeder Machine;
3. Good anti-static performance, effectively ensure that the product is not damaged by anti-static release;
4. High temperature resistance, suitable for high temperature automation equipment assembly;
5. Corrosion resistance, suitable for all kinds of production conditions of products;
6. Matrix arrangement design, under the premise of protecting the product, the most dozen capacity design, cost saving;
7. Edge chamfer design, effectively prevent stacking error, correct the direction of placement
Reference Detail
| Outline Size | Material | Surface Resistance | Service | Flatness | Color |
| 2" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.2mm | Customizable |
| 3" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.25mm | Customizable |
| 4" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.3mm | Customizable |
| Custom size | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | TBC | Customizable |
| Provide professional design and packaging for your products | |||||
| Outline Line Size | 50*50*5mm | Brand | Hiner-pack |
| Model | HN1916 | Package Type | Sapphire |
| Cavity Size | 4.5*4.5mm | Matrix QTY | 10*10=100PCS |
| Material | ABS | Flatness | MAX 0.2mm |
| Color | Black | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS |
Product Application
Wafer Die / Bar / Chips PCBA module component
Electronic component packaging Optical device packaging
FAQ
Q: Can you do OEM and customized design IC tray?
A: We have strong mold manufacturing and product design capabilities, in the mass production of all kinds of IC trays also have rich experience in production.
Q: How long is your delivery time?
A: Generally 5-8 working days, depending on the actual purchase QTY of orders.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the samples, samples may be free or charged according to different product value.and all samples shipping cost normally is by collect or as agreed.
Q: What kind of Incoterm you can do?
A: We could support to do Ex works, FOB ,CNF, CIF, CFR, DDU, DAP etc. and other incoterm as agreed.
Q: What method you can help ship the goods?
A: By sea, by air, or by express, by mail post according to customer order qty and volume.
