2-inch Waffle Pack IC Chip Tray

2-inch Waffle Pack IC Chip Tray

Brand Name: Hiner-pack
Model Number: HN2078
MOQ: 1000 pcs
Price: $0.35~$0.85(Prices are determined according to different incoterms and quantities)
Payment Terms: T/T
Supply Ability: The capacity is between 4000PCS~5000PCS/per day
Detail Information
Place of Origin:
Made In China
Certification:
ISO 9001 ROHS SGS
Material:
ABS.PC.PPE.MPPO...etc
Color:
Black.Red.Yellow.Green.White..etc
Property:
ESD
Design:
Standard
Size:
2 Inch
Surface Resistance:
1.0x10E4~1.0x10E11Ω
Clean Class:
General And Ultrasonic Cleaning
Incoterms:
EXW,FOB,CIF,DDU,DDP
Injection Mold:
Lead Time 20~25Days,Mold Life Span: 30~450,000 Times
Molding Method:
Injection Moulding
Packaging Details:
It depends on the QTY of order and size of product
Supply Ability:
The capacity is between 4000PCS~5000PCS/per day
Highlight:

Waffle Pack IC Chip Tray

,

Waffle IC Chip Tray

,

ic waffle pack tray

Product Description

2-inch Waffle Pack IC Chip Tray

Custom cavity waffle packs tailored to your chip size, thickness, and handling method—ideal for high-value devices.


High temperature tray is an IC tray, an IC tray is a semiconductor chip enterprise for its chips for packaging and baking test carrier. Because it can be used in a 120℃-220℃bake environment without deformation characteristics, the electronic waste industry commonly known as "high temperature plate"


Antistatic plastic trays can eliminate static electricity, a large number of electronic devices and products in the production process of turnover loading, packaging, storage, and transportation. The finished product has good mechanical strength and heat resistance, Good impact resistance, and chemical corrosion resistance. It will not change its anti-static performance due to the environment, time, and temperature. It is mainly used in the electronics industry.

Advantages:

1. Lightweight, saving transportation and packaging costs;
2. Size specification, compatible with any 2 ", 3 ", or 4" Waffle Pack Feeder Machine;
3. Good anti-static performance, effectively ensures that the product is not damaged by anti-static release;
4. High temperature resistance, suitable for high temperature automation equipment assembly;
5. Corrosion resistance, suitable for all kinds of production conditions of products;
6. Matrix arrangement design, under the premise of protecting the product, the most dozen capacity design, cost saving;
7. Edge chamfer design effectively prevents stacking error, and corrects the direction of placement.

Technical Parameters:

Outline Size Material Surface Resistance Service Flatness Color
2" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM, ODM Max 0.2mm Customizable
3" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM, ODM Max 0.25mm Customizable
4" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM, ODM Max 0.3mm Customizable
Custom size ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM, ODM TBC Customizable
Provide professional design and packaging for your products


Brand Hiner-pack Outline Line Size 50.7*50.7*4mm
Model HN2078 Cavity Size 4.83*3.94*0.65 mm
Package Type Die Matrix QTY 10*8=80PCS
Material PC Flatness MAX 0.2mm
Color Black Service Accept OEM, ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate RoHS

Application:

Semiconductor Wafer Die Wafer Bare, Electronic components, optical electronic components, etc.

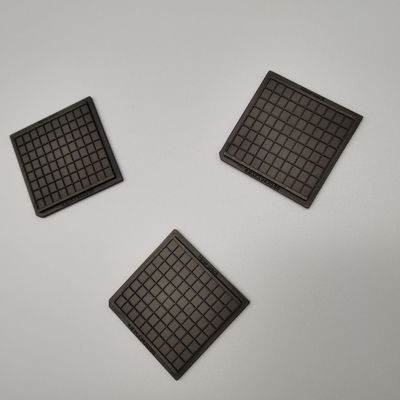

2-inch Waffle Pack IC Chip Tray 0

FAQ:

Q: Can you do OEM and customized design IC trays?
A: We have strong mold manufacturing and product design capabilities, in the mass production of all kinds of IC trays also have rich experience in production.
Q: How long is your delivery time?
A: Generally 5-8 working days, depending on the actual purchase quantity of orders.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the samples, samples may be free or charged according to different product value, and all samples shipping costs are normally is by collected or as agreed.
Q: What kind of Incoterms can you do?
A: We could support Ex works, FOB, CNF, CIF, CFR, DDU, DAP, etc., and other incoterms as agreed.
Q: What method can you help ship the goods?
A: By sea, by air, or by express, by mail, post, according to customer order quantity and volume.

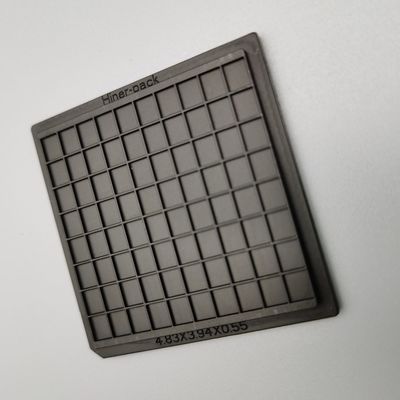

2-inch Waffle Pack IC Chip Tray 1
