Product Details:
|
| Material: | MPPO | Color: | Black |
|---|---|---|---|
| Temperature: | 80°C~180°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| High Light: | Jedec Anti Static Trays,ESD Anti Static Trays,IC Jedec Trays |
||
Character Reference
1. Material:ESD PPE injection molding
2. Properties:release goods surface of goods static charge,so the goods will not produce charge accumulation and high potential difference.
3. Really togh ,moistureproof,and anti-corrosive.
4. Use:cycle loading ,packaging storage and transportation in producing processing and electronic devices

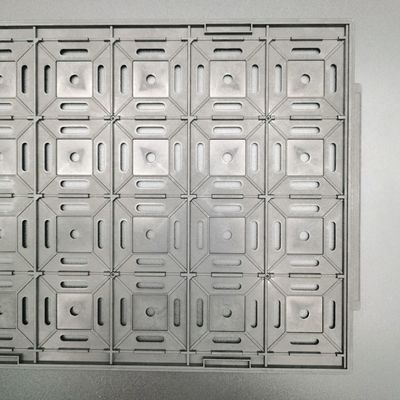

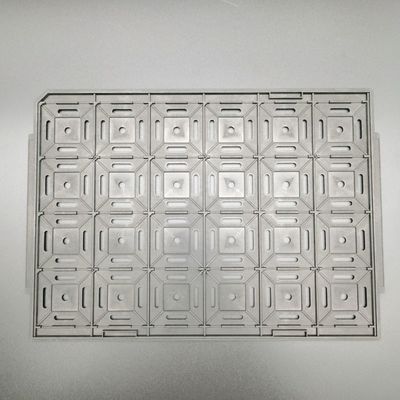

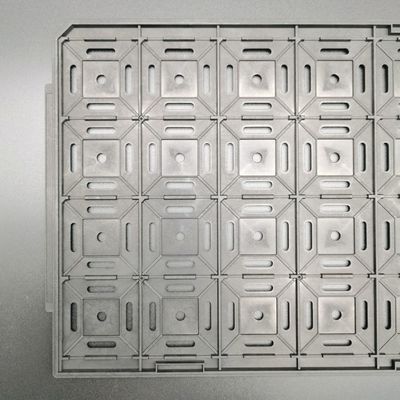

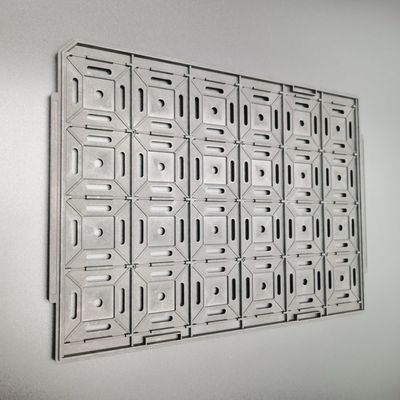

The Flat cells in the center area of each tray is designed for automatic equipment to allow the use of vacuum picking up tools. If it is necessary to cancel in special cases, we can also change the design according to your requirements at the beginning of the design.
Benefits
Able to present non-standard components to Pick and Place machines
Multiple uses for fixture including component bake-out, storage and shipping
Cost effective alternative to “tape and reel” or “hand” placement
1. Small size, lightweight, low transportation cost
2. Each tray can accommodate a large number of chips suitable for transfer or loading samples for testing
3. Stable anti-static performance, good protection chip is not hurt by resistance
4. Very good flatness, easy to operate on automatic equipment
5. It can be matched with the cover and clips of the same series, convenient to meet all kinds of shipping methods
6. Recycling, plastic material is easy to degrade after waste, no environmental concerns
7. It can be stack-able and can also ensure the design of maximum utilization of tray matrix
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized | ||
Product Advantage
1. Have exported for more than 10 years
2. Have professional engineer and efficient management
3. Delivery time is short, normally in stock
4. Small quantity is allowed.
5. The best & professional sale services, 24hours Response.
6. Our products have been exported to USA, Germany, UK, Europe, Korea, Japen...etc, Win many big famous customer reputation.
7. Factory have ISO certificate, Product comply to Rohs standard.
FAQ
1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.
2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.
3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
