Product Details:
|
| Material: | PC | Color: | Black |
|---|---|---|---|
| Temperature: | 80°C~180°C | Property: | ESD,Non-ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| Highlight: | Smd Components Packages Tray,ISO Smd Components Packages Tray,ISO ic packaging tray |
||
Hiner-pack production IC tray is in line with international environmental standards,through the ROHS and SGS third party inspection, such as raw material of the raw material buying from domestic leading manufacturer, incoming inspection and related technology and strictly control the quality during production, quality department must confirm the product 100% qualified before shipment, are sold to domestic and international famous customers over the years, After the use of positive feedback, rich experience in injection molding industry also provides customers with the most appropriate packaging solutions.
Hiner-pack has leading mould processing and injection molding equipment,high level dustless cleaning devices and a variety of testing equipment.Meanwhile,Hiner-pack has established a depth of cooperation with well-known enterprises and built a polymer material R&D base with domestic well-known universities as well as researching institutions.Hiner-pack has mastered special process technique and manufacturing in semiconductor packaging raw material field.Owned a lot of inventions and practical new patents.Through years of unremitting efforts,Hiner-pack has a professional R&D team to improve semiconductor packaging products,constantly launch new products,and solve the customers’ demand for high quality products.
Benefits
Able to present non-standard components to Pick and Place machines
Multiple uses for fixture including component bake-out, storage and shipping
Cost effective alternative to “tape and reel” or “hand” placement
1. Small size, light weight, low transportation cost
2. Each tray can accommodate a large number of chips suitable for transfer or loading samples for testing
3. Stable anti-static performance, good protection chip is not hurt by resistance
4. Very good flatness, easy to operate on automatic equipment
5. It can be matched with the cover and clips of the same series, convenient to meet all kinds of shipping methods
6. Recycling, plastic material is easy to degrade after waste, no environmental concerns
7. It can be stack-able and can also ensure the design of maximum utilization of tray matrix
| Usage | Packaging of Electronic Components,Optical device, |
| Feature | ESD, Durable, High Temperature, Waterproof, Recycled, Eco-friendly |
| Material | MPPO.PPE.ABS.PEI.IDP...etc |
| Color | Black.Red.Yellow.Green.White and custom color |
| Size | Customized size, rectangle,circle shape |
| Mold type | Injection Mold |
| Design | Original sample or we can create the designs |
| Packing | By Carton |
| Sample | Sample time: after draft confirmed and payment arranged |
| Sample charge: 1. Free for stock samples | |
| 2. Custom Tray negotiated | |
| Lead Time | 5-7 Working days |
| The exact time should according to the ordered quantity |

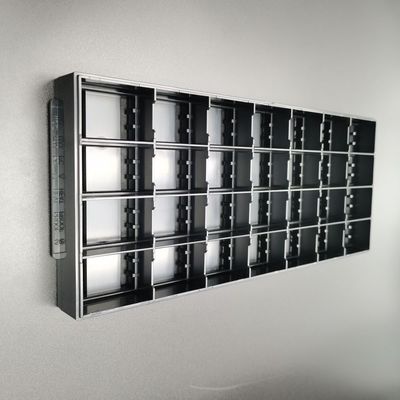

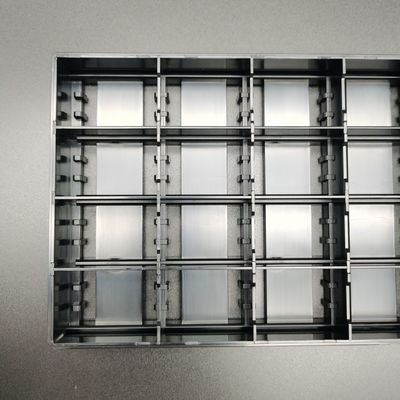

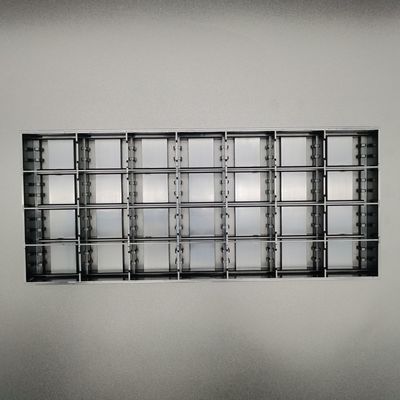

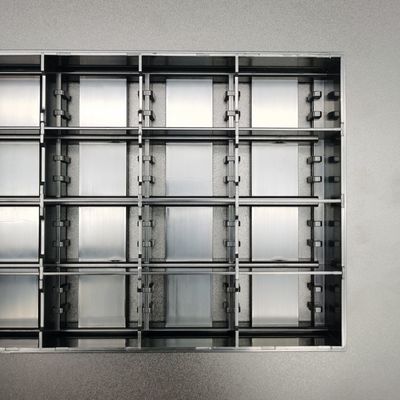

| Outline Line Size | 322.6*135.9*29.1mm | Brand | Hiner-pack |
| Model | HN 2083 | Package Type | Devices |
| Cavity Size | 36.94*26.30*23.90mm | Matrix QTY | 7*4=28PCS |
| Material | HIPS | Flatness | N/A |
| Color | Black | Temperature | 80~180°C |
| Resistance | 1.0x10e4-1.0x10e11Ω | Service | Accept OEM,ODM |
FAQ
Q1: Are You Manufacturer or Trade Company?
We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.
Q2: What is the material of your product?
ABS.PC.PPE.MPPO.PEI.HIPS...etc
Q3: Can you help with the design?
Yes, we can accept your customization and do the packaging for you according to your requirement.
Q4: How can I get the quotation of the custom products ?
Let us know the size of your IC or component thickness,and then we can make a quotation for you.
Q5: Can I get some samples before making a bulk order?
Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.
Q6: Could you put my logo in our product?
Yes, we can put your logo in our product, show us your logo firstly please.
Q7: When can we get the samples?
We can send you them right now if you are interested in something we have stock, and customize
the project depending on the specific time
