Product Details:
|
| Material: | HIPS | Color: | Black |
|---|---|---|---|
| Temperature: | 80°C~180°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| High Light: | ODM Anti Static Trays,HIPS Anti Static Trays,ESD Conductive Tray |
||

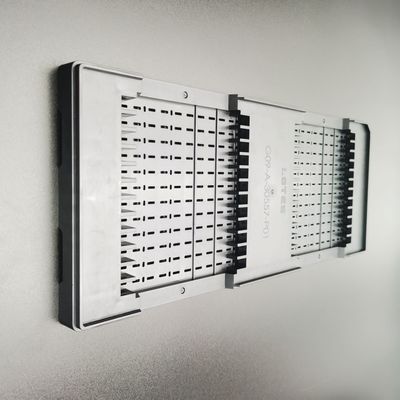

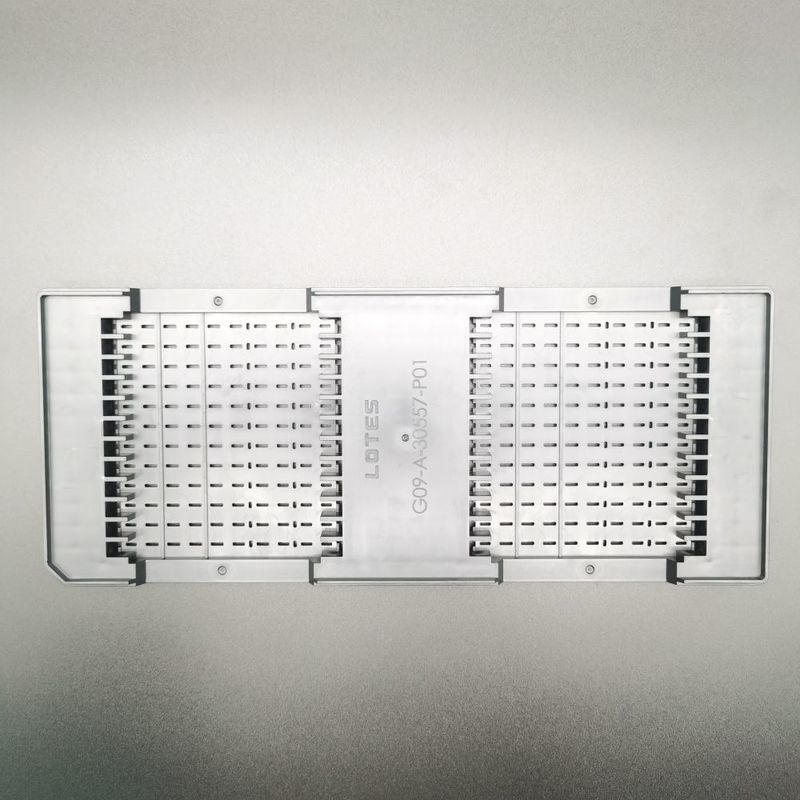

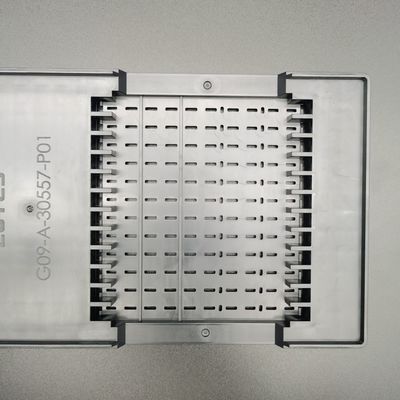

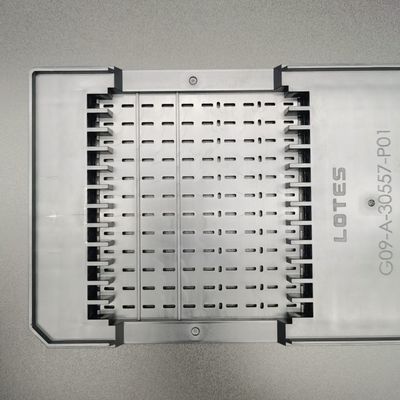

The use of anti-static tray storage electronic components, can effectively avoid short circuit phenomenon.Because the product is prone to friction in the process of placement and transportation, if there is some static electricity on the circuit board of the product, it is easy to lead to short circuit of the circuit board, affecting the quality of the product, and may even cause damage.
Anti-static tray can effectively release the static charge accumulated on the surface of the object, so that it will not produce charge accumulation and high potential difference, so it can greatly reduce the damage rate of electronic products in the production process, reduce costs, improve product quality and profit.
Material Description
ESD Conductive Material
Also can be antistatic or Conductive and can be normal one .
Application:
IC, Electronic component, Semiconductor, Micro and Nano systems and Sensor IC etc
| Outline Line Size | 136*330.18mm | Brand | Hiner-pack |
| Model | HN 2036 | Package Type | Devices |
| Cavity Size | 106.5*6.2mm | Matrix QTY | 12*2=24PCS |
| Material | HIPS | Flatness | N/A |
| Color | Black | Temperature | 80~180°C |
| Resistance | 1.0x10e4-1.0x10e11Ω | Service | Accept OEM,ODM |
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized | ||
FAQ
1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.
2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.
3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
