Product Details:
|
| Material: | ABS.PC.MPPO...etc | Color: | Black.Red.Yellow.Green.White..etc |
|---|---|---|---|
| Temperature: | General 80°C~100°C | Property: | ESD,Non-ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | 0.5mm |
| Customized Service: | Suitable For All Kinds Of Bar.Die.Chip Devices Or Parts | Injection Mold: | Customized Case Need(Lead Time 20~25Days,Mold Life Span: 450,000 Times.) |
| High Light: | Antistatic ESD Safe Trays,PCB Anti Static Tray,SGS ic chips tray |
||

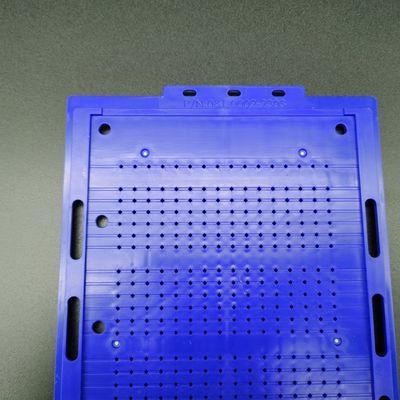

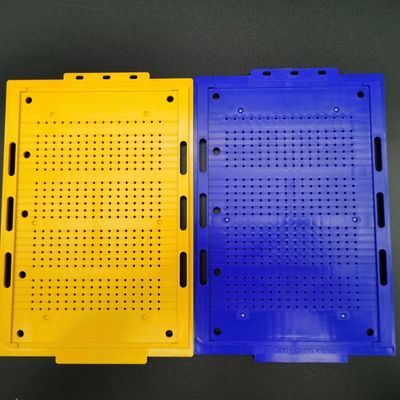

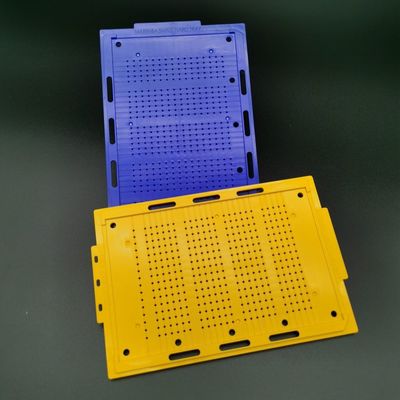

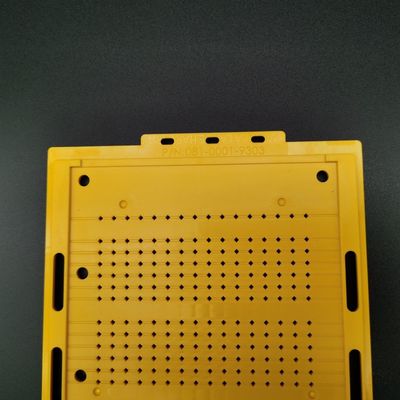

SGS High Precision Anti Static ESD Safe Trays Injection Molding Loading IC Chips
Customized High Precision Anti-Static Color Plastic Tray Loading IC Chips
The anti-static tray is made of special high-temperature resistant plastic by injection molding process, and the resistance value of the material surface is according to international standard.
It also can eliminate product static electricity, a large number of electronic devices and product production process of turnover loading, packaging, storage and transportation. In the industry, it is also known as the conductive electrostatic tray, which is suitable for the storage of precision electronic components. According to the requirements of customers' electronic components, there are different requirements for the size.
ESD tray is a form of packaging designed for use with parts that are either very small or unusual in shape. Waffle pack are embossed or pocketed trays, typically made of plastic, that resemble a breakfast waffle (hence the name). The waffle packs are loaded using pick and place equipment so that the "inside" of each pocket contains a part or component. Once loaded - the parts are covered with anti-static paper, and then a foam-covered crown holds the parts in place, and finally, a lid secures the waffle package together.
Product Application
Wafer Die / Bar / Chips PCBA module component
Electronic component packaging Optical device packaging
Packaging
Packaging Details:Packing according to customer's specified size
Advantages
1. More than 10 years export experience
2. With professional engineers and efficient management
3. Short delivery time and good quality
4. Support small batch production in the first batch
5. Professional sales within 24 hours efficient reply
6. Factory has ISO certification, and the products comply to RoHS standard.
7. Our products are exported to the United States, Germany, UK, Korea, Japan, Israel, Malaysia, etc. won the praise of many customers, service or cost performance has been well recognized
| Outline Size | Material | Surface Resistance | Service | Flatness | Color |
| 2" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.2mm | Customizable |
| 3" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.25mm | Customizable |
| 4" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.3mm | Customizable |
| Custom size | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | TBC | Customizable |
| Provide professional design and packaging for your products | |||||
| Outline Line Size | 139*210*7 mm | Brand | Hiner-pack |
| Model | HN 2053&2054 | Package Type | IC.Connector |
| Cavity Size | 1.3*1.3&0.85*0.85 mm | Matrix QTY | 24*16=384PCS |
| Material | ABS | Flatness | MAX 0.4mm |
| Color | Yellow,Blue | Temperature | 80~180°C |
| Resistance | 1.0x10e4-1.0x10e11Ω | Service | Accept OEM,ODM |
FAQ
Q: Can you do OEM and customized design IC tray?
A: We have strong mold manufacturing and product design capabilities, in the mass production of all kinds of IC trays also have rich experience in production.
Q: How long is your delivery time?
A: Generally 5-8 working days, depending on the actual purchase QTY of orders.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the samples, samples may be free or charged according to different product value.and all samples shipping cost normally is by collect or as agreed.
Q: What kind of Incoterm you can do?
A: We could support to do Ex works, FOB ,CNF, CIF, CFR, DDU, DAP etc. and other incoterm as agreed.
Q: What method you can help ship the goods?
A: By sea, by air, or by express, by mail post according to customer order qty and volume.
