Product Details:
|
| Material: | PC | Color: | Green.White..etc |
|---|---|---|---|
| Temperature: | General 80°C~100°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.5mm |
| Customized Service: | Suitable For All Kinds Of Bar.Die.Chip Devices Or Parts | Injection Mold: | Customized Case Need(Lead Time 20~25Days,Mold Life Span: 450,000 Times.) |
| High Light: | Waterproof Anti Static Trays,PCBA Anti Static Trays,Waterproof esd pcb tray |
||

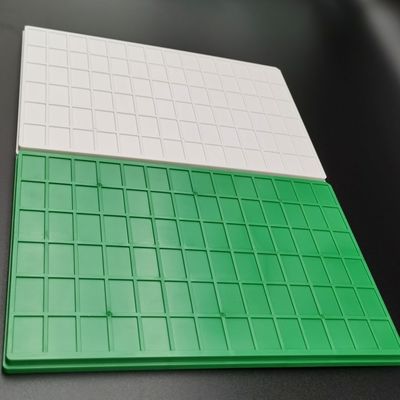

Waterproof PC Anti Static Trays Heat Proof 100 Degree For PCBA Modules
Waterproof Antistatic PC Plastic Tray Can Be Customized For PCB Modules
PCB Modulse can be delivered in a tray which is also known as waffle pack – a plastic tray with pockets that match the die size. A waffle pack has a lid and is delivered in an antistatic bag. Waffle packs are ideal for delivering small number of silicon dies, typically from a MPW process.
Product Application
Wafer Die / Bar / Chips PCBA module component
Electronic component packaging Optical device packaging
Packaging
Packaging Details:Packing according to customer's specified size
ADVANTAGES:
1. More than 10 years export experience
2. With professional engineers and efficient management
3. Short delivery time and good quality
4. Support small batch production in the first batch
5. Professional sales within 24 hours efficient reply
6. Factory has ISO certification, and the products comply to RoHS standard.
7. Our products are exported to the United States, Germany, UK, Korea, Japan, Israel, Malaysia, etc. won the praise of many customers, service or cost performance has been well recognized
| Outline Line Size | 250*161*11mm | Brand | Hiner-pack |
| Model | HN 1813 | Package Type | PCB Module |
| Cavity Size | 23.1*14.85*5mm | Matrix QTY | 6*14=84PCS |
| Material | PC | Flatness | MAX 0.5mm |
| Color | White,Green | Temperature | 80~100°C |
| Resistance | 1.0x10e4-1.0x10e11Ω | Service | Accept OEM,ODM |
| Outline Size | Material | Surface Resistance | Service | Flatness | Color |
| 2" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.2mm | Customizable |
| 3" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.25mm | Customizable |
| 4" | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | Max 0.3mm | Customizable |
| Custom size | ABS.PC.PPE...etc | 1.0x10e4-1.0x10e11Ω | OEM,ODM | TBC | Customizable |
| Provide professional design and packaging for your products | |||||
FAQ
Q1. Do your products get any certificates?
Yes, CE for EU market, FDA for USA market.
Q2.Can you do the design for us?
Yes. We have a professional team having rich experience in designing and manufacturing. Just tell us your ideas and we will help to carry out your ideas into perfect fact. It does not matter if you do not have some one to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q3. How long is the delivery time?
For standard machine, it would be 5-7Working days. For non-standard/customized machines according to clients' specific requirements, It would be 20~25 working days.
Q4. Do you arrange shipment for the products?
It’s depends on our incoterms,If FOB or CIF price, we will arrange shipment for you, but EXW price, clients need to arrange shipment by themselves or their agents.
Q5. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, including Commercial Invoice, Packing List, B/L and other certificates as required by clients.
