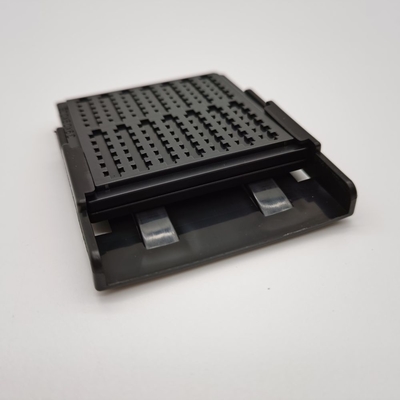

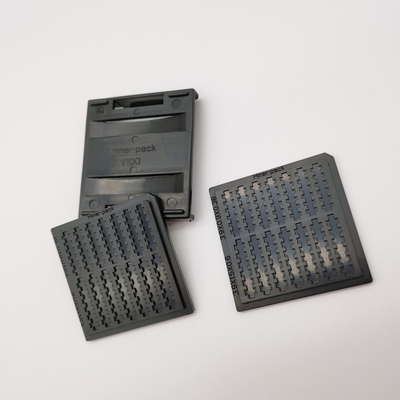

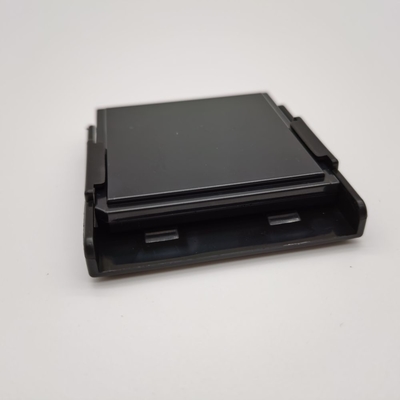

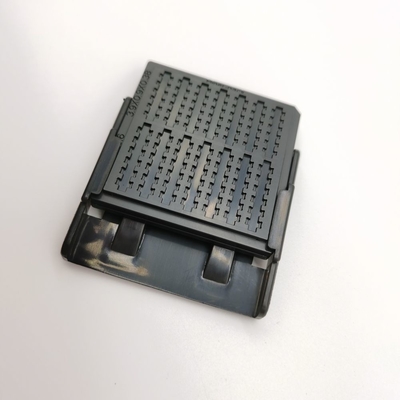

Custom Loaded Waffle Pack IC Chip Tray Anti Static ESD Safe Trays

Custom Loaded Waffle Pack IC Chip Tray Anti Static ESD Safe Trays

Brand Name: Hiner-pack
Model Number: HN21070
MOQ: 1000 pcs
Price: $0.35~$0.85(Prices are determined according to different incoterms and quantities)
Payment Terms: T/T
Supply Ability: The capacity is between 4000PCS~5000PCS/per day
Detail Information
Place of Origin:
Made In China
Certification:
ISO 9001 ROHS SGS
Material:
PC
Color:
Black
Property:
ESD
Design:
Non-standard
Surface Resistance:
1.0x10E4~1.0x10E11Ω
Clean Class:
General And Ultrasonic Cleaning
Injection Mold:
Lead Time 20~25Days,Mold Life Span: 30~450,000 Times
Molding Method:
Injection Moulding
Packaging Details:
It depends on the QTY of order and size of product
Supply Ability:
The capacity is between 4000PCS~5000PCS/per day
Highlight:

OEM IC Chip Tray

,

ESD Safe IC Chip Tray

,

Waffle Pack ESD Safe Trays

Product Description

Custom Loaded Waffle Pack IC Chip Tray Anti Static ESD Safe Trays



Custom Loaded Light Chip Waffle Pack Chip Tray Series Products



As the tray in the field of optical application, more and more customers in order to protect components or optical devices, are willing to choose injection molding tray for packaging solution, because the tray can carrier component also provides comprehensive protection to transit and transport provides great convenience, all kinds of specifications and various color can be realized,Provide one-stop service from design to production to packaging.



What is an ESD tray?



ESD Trays are stock and include anti-static and conductive options. ESD-Safe Trays are used for packaging, shipping, and storage of small electronic parts, circuit boards, pcb, pcba, & electronic components.



Our Service


1. We have sample stock, also can help the client to choose which type is suitable for them.
2. We will reply you in any time if you have questions.
3. Choose suitable product for clients according to clients' requirement.
4. After mold customization, free samples will be provided until the customer tests OK, so as to remove the mass production quality concerns of customers before quantity



Reference Detail



Outline Line Size 50.7*50.7*4mm Brand Hiner-pack
Model HN21070 Package Type N/A
Cavity Size 3.9*1.5*0.6mm
3.9*0.9*0.38mm
Matrix QTY 6*7=42PCS
6*7=42PCS
Material PC Flatness MAX 0.2mm
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS SGS
Outline Size Material Surface Resistance Service Flatness Color
2" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.2mm Customizable
3" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.25mm Customizable
4" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.3mm Customizable
Custom size ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM TBC Customizable
Provide professional design and packaging for your products

Custom Loaded Waffle Pack IC Chip Tray Anti Static ESD Safe Trays 0

Product Application



Wafer Die / Bar / Chips                     PCBA module component

Electronic component packaging      Optical device packaging



FAQ



Q: Can you do OEM and customized design IC tray?
A: We have strong mold manufacturing and product design capabilities, in the mass production of all kinds of IC trays also have rich experience in production.
Q: How long is your delivery time?
A: Generally 5-8 working days, depending on the actual purchase QTY of orders.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the samples, samples may be free or charged according to different product value.and all samples shipping cost normally is by collect or as agreed.
Q: What kind of Incoterm you can do?
A: We could support to do Ex works, FOB ,CNF, CIF, CFR, DDU, DAP etc. and other incoterm as agreed.
Q: What method you can help ship the goods?
A: By sea, by air, or by express, by mail post according to customer order qty and volume.

Custom Loaded Waffle Pack IC Chip Tray Anti Static ESD Safe Trays 1
