Black ESD Plastic Stackable Waffle Pack Chip Tray Ultra Clean

Black ESD Plastic Stackable Waffle Pack Chip Tray Ultra Clean
Black ESD Plastic Stackable Waffle Pack Chip Tray Ultra Clean Black ESD Plastic Stackable Waffle Pack Chip Tray Ultra Clean Black ESD Plastic Stackable Waffle Pack Chip Tray Ultra Clean

Large Image :  Black ESD Plastic Stackable Waffle Pack Chip Tray Ultra Clean

Product Details:
Place of Origin: Made In China
Brand Name: Hiner-pack
Certification: ISO 9001 ROHS SGS
Model Number: HN21109
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: $0.35~$0.85(Prices are determined according to different incoterms and quantities)
Packaging Details: It depends on the QTY of order and size of product
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: The capacity is between 4000PCS~5000PCS/per day

Black ESD Plastic Stackable Waffle Pack Chip Tray Ultra Clean

Material: PC Color: Black
Matrix QTY: 6*7=42PCS Design: Non-standard
Surface Resistance: 1.0x10E4~1.0x10E11Ω Clean Class: General And Ultrasonic Cleaning
Injection Mold: Lead Time 20~25Days,Mold Life Span: 30~450,000 Times Molding Method: Injection Moulding
High Light:

ESD Waffle Pack Chip Tray


Plastic Waffle Pack Chip Tray


Stackable IC Chip Tray

Ultra Clean Black ESD Plastic Stackable Waffle Pack Chip Tray


The waffle pack chip tray is widely used by customers in the semiconductor and electronics industries,Who have high requirements for cleanliness and size of products. From the design drawing, mold manufacturing, product manufacturing to cleaning and packaging and so on, all the steps and operations are strictly quality control. Our ultimate goal is to deliver products that satisfy our customers.


We can customize various specifications and sizes of trays according to customer needs. Recommend the most reasonable loading solution for customers, and multiple trays can be overlapped, increase the storage of electronic components, PCB board, dust-free workshop parts, and saves production costs.

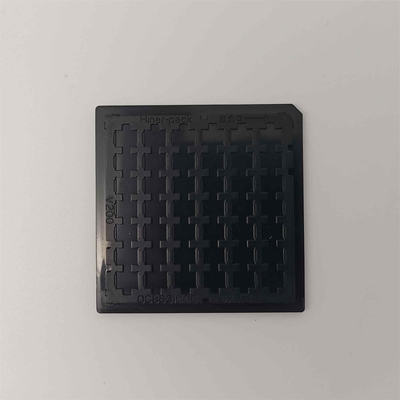

The Details of the HN21109 Black 2 Inch Waffle Pack


The HN21109 waffle packs are trays made of plastic. This material can be recycled and easily degraded after being damaged and abandoned, so customers don't have to worry about environmental production issues.


At the same time, it is small in size, light in weight, low in transportation cost, suitable for transferring or loading samples for testing. Hiner-pack also produces matching lids and clamps that can fit with packs for all types of shipping.


Outline Line Size 50.7*50.7*4mm Brand Hiner-pack
Model HN21109 Package Type Die
Cavity Size 3.9*5.2*0.6 Matrix QTY 6*7=42PCS
Material PC Flatness MAX 0.2mm
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS SGS



Application of the HN21109 Black 2 inch Waffle Pack


Wafer Die / Bar / Chips                     PCBA module component
Electronic component packaging      Optical device packaging


Outline Size Material Surface Resistance Service Flatness Color
2" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.2mm Customizable
3" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.25mm Customizable
4" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.3mm Customizable
Custom size ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM TBC Customizable
Provide professional design and packaging for your products


Service Of IC Tray Manufacturer


1. We have sample stock, also can help the client to choose which type is suitable for them.
2. We will reply you in any time if you have questions.
3. Choose suitable product for clients according to clients' requirement.
4. After mold customization, free samples will be provided until the customer tests OK, so as to remove the mass production quality concerns of customers before quantity.

Black ESD Plastic Stackable Waffle Pack Chip Tray Ultra Clean 0


FAQ Of Hiner-pack waffle pack series products


Q1: Are You Manufacturer or Trade Company?

Ans: We are the 100% Manufacturer specialized in packaging over 10 years with 4500 square meters workshop area, located in Shenzhen China.

Q2: What is the material of your product?


Q3: Can you help with the design?

Ans: Yes, we can accept your customization and do the packaging for you according to your requirement.

Q4: How can I get the quotation of the custom products ?

Ans: Let us know the size of your IC or component thickness,and then we can make a quotation for you.

Q5: Can I get some samples before making a bulk order?

Ans:Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.

Q6: Could you put my logo in our product?
Ans:Yes, we can put your logo in our product, show us your logo firstly please.

Q7: When can we get the samples?
Ans: We can send you them right now if you are interested in something we have stock, and customize,the project depending on the specific time.

stackableBlack ESD Plastic Stackable Waffle Pack Chip Tray Ultra Clean 1
