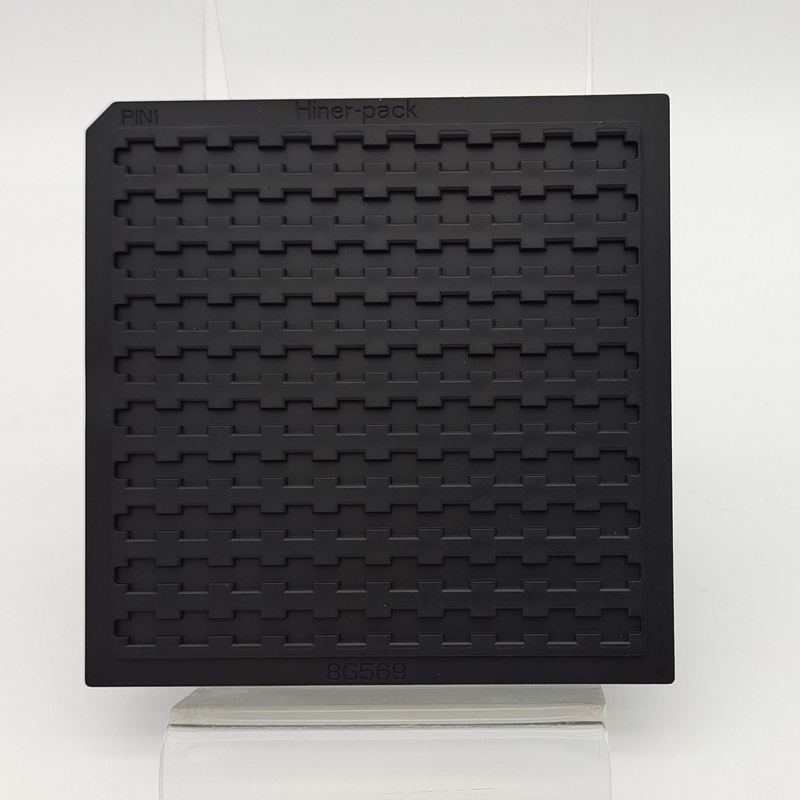

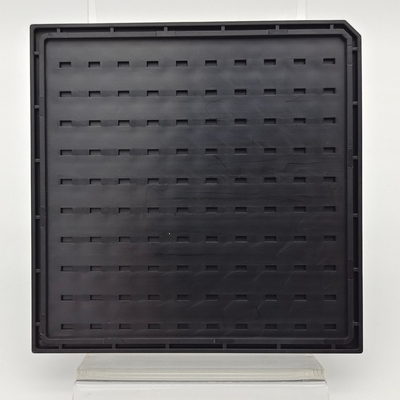

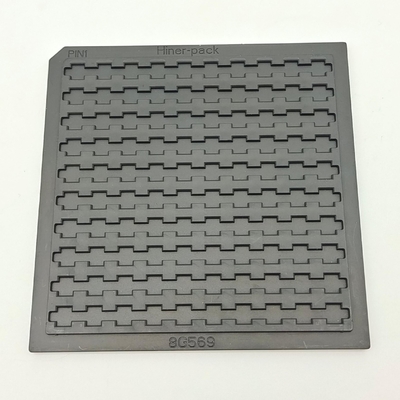

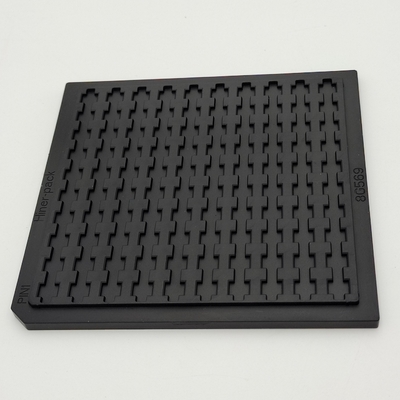

Square Chamfer Design IC Chip Tray Integrated Circuit Waffle Pack Capacity 100 PCS

Name: Square Chamfer Design IC Chip Tray Integrated Circuit Waffle Pack Capacity 100 PCS
Brand: Shenzhen Hiner Technology Co.,LTD
SKU: HN22157
Price: 0.35 USD
Availability: InStock

Brand Name:	Hiner-pack
Model Number:	HN22157
MOQ:	1000
Price:	TBC
Payment Terms:	100% Prepayment
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001 SGS ROHS

Warpage:

2 Inch >0.2mm 4 Inch>0.3mm

Chemical Resistant:

In Line With JEDEC International Standards, Strong Versatility.

Clean Class:

General And Ultrasonic Cleaning

Temperature:

According To Product Material

Height:

Standard Size

Design:

Chamfer

Reusable:

Yes

Injection Mold:

Lead Time 20~25Days

Packaging Details:

500 pcs/carton(According to actual packing）

Supply Ability:

2000PCS/Day

Highlight:

Square Chamfer Design IC Chip Tray

Integrated Circuit Waffle Pack

100 PCS IC Chip Tray

Product Description

Product Description:

With their compact size and durable construction, waffle packs offer just that, making them a top choice for professionals across various industries.

Not only are waffle packs well-established, but they also provide a convenient and efficient solution for storing, shipping, and handling small parts.

Technical Parameters:

Product Name	Waffle Pack/IC Chip Tray
Pocket Size	4.25.32mm
External Dimension	101.57101.575.5mm
Matrix Qty	10*10=100PCS
MOQ	1000pcs
Delivery Time	1-2 weeks

Features:

Dimensional accuracy: Provide high-precision dimensions to ensure the safety and reliability of chips during placement and removal.
Compatibility: Compatible with multiple chip and packaging types to meet different production needs.
Chemical resistance: Has good tolerance to common chemicals, ensuring no impact during cleaning and processing.

Applications:

Wafer Handling: Waffle packs are used to safely store and transport silicon wafers during various manufacturing processes. Their design prevents movement and protects wafers from contamination and damage.
Integrated Circuit (IC) Storage: After cutting wafers into individual dies, waffle packs securely hold these ICs, minimizing the risk of physical damage or contamination before they are mounted onto PCBs (Printed Circuit Boards).

Square Chamfer Design IC Chip Tray Integrated Circuit Waffle Pack Capacity 100 PCS 0

Support and Services:

Technical Support: Provide professional technical consultation and answer customers' questions during use.
Quality Assurance: Provide product quality assurance to ensure that the chip disk meets the specified standards and specifications.
Customized services: Provide personalized services and solutions based on specific customer needs.

FAQ:

Q1: What is the brand name of this IC Chip Tray?

A1: The brand name of this IC Chip Tray is Hiner-pack.

Q2: What is the model number of this IC Chip Tray?

A2: The model number of this IC Chip Tray is HN22157

Q3: Where is this IC Chip Tray manufactured?

A3: This IC Chip Tray is manufactured in China.

Q4: What certifications does this IC Chip Tray have?

A4: This IC Chip Tray has ISO 9001, SGS, and ROHS certifications.

Q5: What is the minimum order quantity for this IC Chip Tray?

A5: The minimum order quantity for this IC Chip Tray is 1000.

Q6: What is the price of this IC Chip Tray?

A6: The price for this IC Chip Tray is to be confirmed (TBC).

Q7: What is the delivery time for this IC Chip Tray?

A7: The delivery time for this IC Chip Tray is 1-2 weeks.

Q8: What are the payment terms for this IC Chip Tray?

A8: The payment terms for this IC Chip Tray are 100% prepayment.
