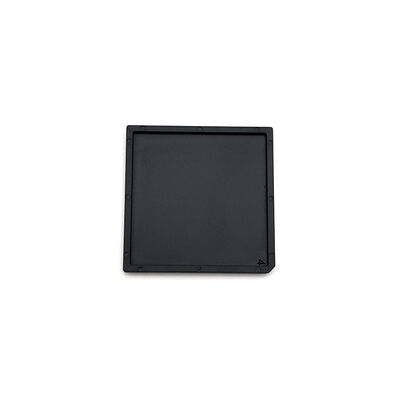

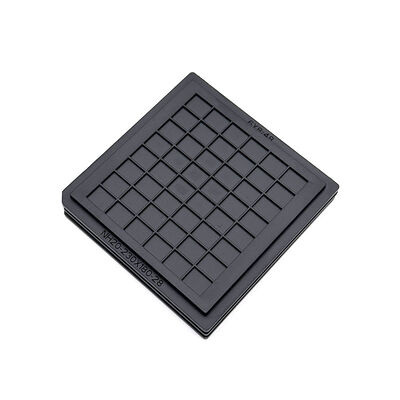

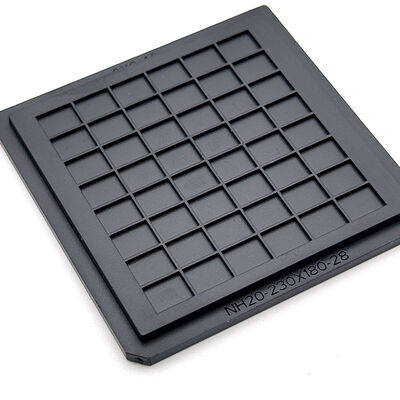

Permanent Antistatic 2 Inch Waffle Pack Chip Trays For R&D Prototyping And Batch Assembly

Brand Name:	Hiner-pack
Model Number:	HN24080
MOQ:	500
Price:	TBC
Payment Terms:	100% Prepayment
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN CHINA

Certification:

ISO 9001 ROHS SGS

Material:

ABS

Molding Method:

Injection Moulding

Warpage:

Max 0.2mm

Color:

Black

Incoterms:

EXW, FOB, CIF, DDU, DDP

Property:

ESD

Dimensions:

50.7x50.7x4mm

Packaging Details:

500 Pcs/carton(According To Actual Packing）

Supply Ability:

2000PCS/Day

Product Description

Permanent Antistatic 2 Inch Waffle Pack Chip Trays For R&D Prototyping And Batch Assembly

Waffle pack is positioned as a cost-effective, high-utility carrier ideal for research and development laboratories, engineering lines, and batch prototype assembly where initial costs and rapid deployment are prioritized. While maintaining the high quality and precision required for microelectronics, this tray focuses on the widely accepted 2×2 inch format, which is convenient for small, sensitive parts. It is constructed from a high-quality, permanent antistatic ABS material. This material provides essential ESD protection required for safely handling bare die and chip-scale packages (CSPs) without the higher cost associated with specialized bakeable or carbon-fiber reinforced materials, making it an excellent entry-point solution.

Key Features/ Benefits

Permanent Antistatic ABS Material
Ideal 2×2 Inch Compact Size
Rapid Turnaround Customization
Stackable and Secure Handling
Precision Molding for Alignment

Specifications

Brand		Hiner-pack
Model		HN24080
Material		ABS
Tray Type		2-inch Waffle Pack
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		50.7x50.7x4mm
Cavity Size		5.84x4.57x0.72mm

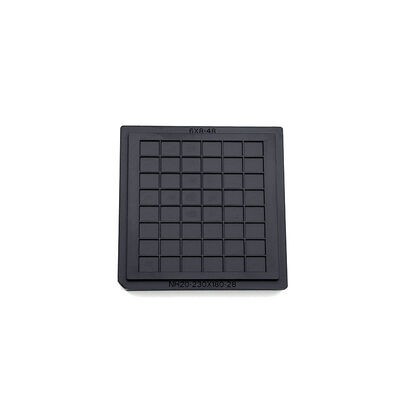

Matrix QTY		6x8=48PCS
Warpage		MAX 0.2mm
Service		Accept OEM, ODM
Certifications		RoHS, ISO

Applications

This waffle pack is primarily applied in the initial stages of the component lifecycle and in lower-volume processes. It is the perfect fit for: R&D Laboratory Use, providing a safe and organized way to manage and test small quantities of new semiconductor or optical designs; Prototype Assembly and Engineering Runs, enabling quick, safe handling of limited component batches before full production scaling; Manual Die Sorting and Inspection, where the tray's compact size and stable pockets facilitate easy manual manipulation and visual quality checks; and Internal Component Transfer, providing a low-cost, secure carrier for moving components between different workstations within a facility. Because many existing processes already utilize the waffle pack format, this tray offers an easy, low-risk entry point for new components moving into established workflows, making the transition seamless and budget-friendly.

Customization

Customization for the R&D focused tray emphasizes functionality and minimum non-recurring expenses (NRE). While the standard material is Antistatic ABS, we offer customization of: Specific Pocket Geometries tailored to protect critical features like terminal pads or lenses on prototype components; Color Coding using different antistatic resins to visually distinguish various component revisions or test lots; and Simplified Mold Designs optimized to reduce the NRE charge for entirely new custom geometries. We are also able to integrate basic alignment features like clearance cuts or tapered walls to accommodate early-stage, semi-automated pick-and-place trials. Our expertise allows us to provide custom-sized pockets and specific features without over-engineering the solution, keeping the focus on speed and cost-effectiveness for low-volume requirements.
