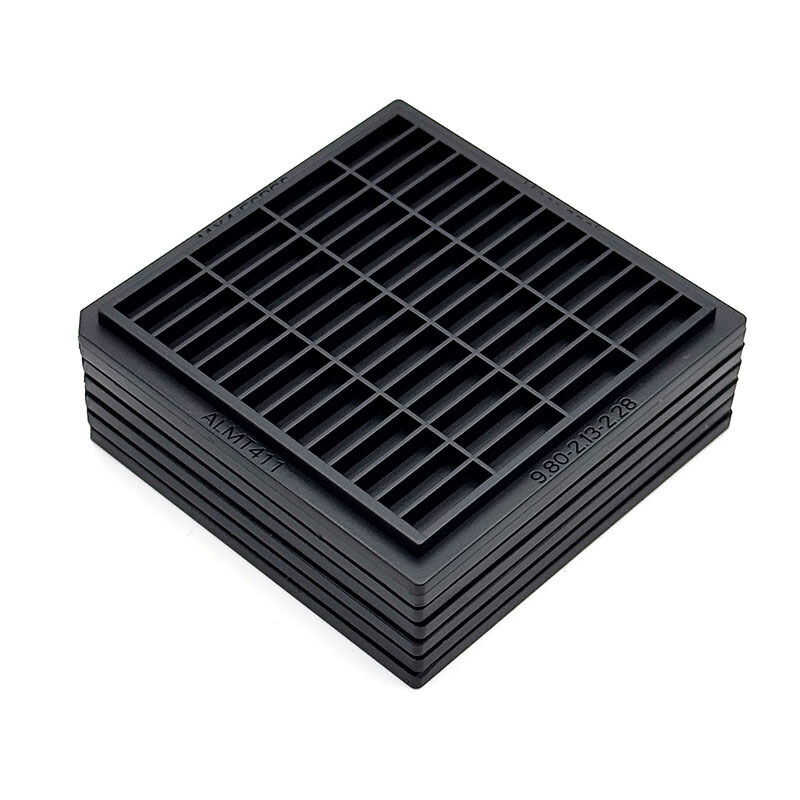

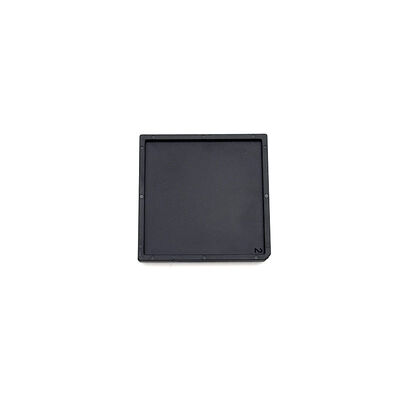

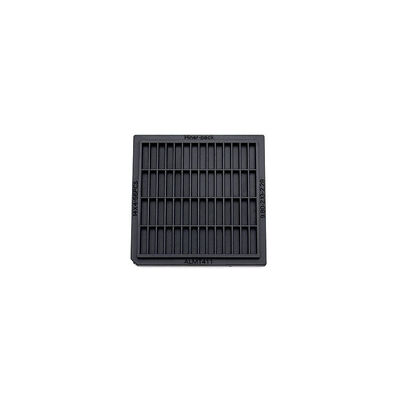

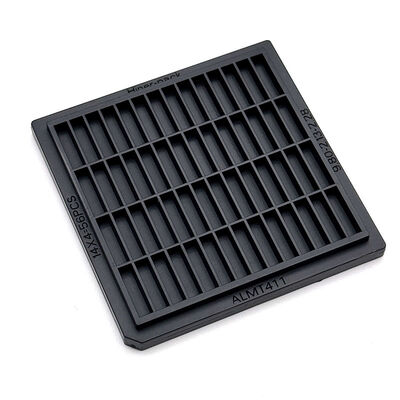

Permanent Antistatic Specialized Small Parts Waffle Pack Chip Trays

Brand Name:	Hiner-pack
Model Number:	HN24098
MOQ:	500
Price:	TBC
Payment Terms:	100% Prepayment
Supply Ability:	2000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN CHINA

Certification:

ISO 9001 ROHS SGS

Use:

Transport, Storage, Packing

Surface Resistance:

1.0x10E4~1.0x10E11Ω

Warpage:

Max 0.2mm

Dimensions:

50.7x50.7x5.5mm

Reusable:

Yes

Capacity:

4X14=56PCS

Incoterms:

EXW, FOB, CIF, DDU, DDP

Packaging Details:

500 Pcs/carton(According To Actual Packing）

Supply Ability:

2000PCS/Day

Product Description

Permanent Antistatic Specialized Small Parts Waffle Pack Chip Trays

While rooted in the semiconductor industry, the utility of the Specialized Waffle Pack Chip Tray extends into any field requiring the management of an inventory of small, high-precision, and often fragile items.
Each tray is molded from permanently antistatic or conductive polymers (ABS/PC), providing a clean and safe environment that prevents the accumulation of dust and the risks associated with static discharge, even in non-electronic applications.
The thin, "waffle" design creates a regular pattern of separator ribs, resulting in individual, protective compartments that prevent components from touching, scratching, or crushing one another. By applying sophisticated Moldflow analysis, we ensure that every tray maintains superior flatness and size precision, making them ideal for both manual sorting and integration with automated tool handling systems.

Key Features/ Benefits

Versatile Cross-Industry Utility
Precision Individual Compartments
Permanent Antistatic and Clean Material
Durable and Crush-Resistant Construction
Ease of Manual and Automated Handling
RoHS and Environmental Compliance

Specifications

Brand		Hiner-pack
Model		HN24098
Material		PC
Tray Type		2-inch Waffle Pack
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		50.7x50.7x5.5mm
Cavity Size		9.554x1.93x1.525mm
Matrix QTY		4X14=56PCS
Warpage		MAX 0.2mm
Service		Accept OEM, ODM
Certifications		RoHS, ISO

Applications

These multi-purpose waffle pack trays are indispensable in High-Precision Micro-Manufacturing. Key applications include: Medical Device Assembly, where they are used to store and transport miniature screws, pins, and sensors; The Watchmaking Industry, providing a safe haven for delicate balance wheels, hairsprings, and jewels; Gemstone and Jewelry Trade, offering an organized and protective method for shipping and presenting loose stones; and Aerospace Component Management, for the secure handling of specialized micro-fasteners and springs. They are also widely used in R&D and Engineering Labs as a standardized way to kit small parts for prototype builds. Their ability to safeguard, automate, and ship a wide variety of products makes them a favorite for any industry where managing a high-density inventory of small items is a daily requirement.

Customization

We specialize in designing from scratch to meet the unique requirements of diverse industries. Customization options for these versatile trays include: Bespoke Pocket Geometries that match the exact shape of a surgical tool or a watch gear; Specialized Materials such as high-temperature bakeable plastics for parts that require sterilization or thermal drying; and Custom Branding or Engraving to assist with inventory tracking and brand recognition. Whether you need a tray for a unique medical implant or a specialized precision spring, our engineering team can create a configuration that ensures proper support and alignment. We can ship custom trays, meeting the most stringent quality requirements, in as little as two to five weeks, leveraging our established technology to provide a unique solution for your specific needs.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Factory-direct manufacturer of JEDEC & IC trays
JEDEC compliant, automation-compatible designs
OEM & ODM customization supported
Consistent quality and stable supply
Trusted by global semiconductor customers
