Product Details:
|
Szie: | Place Standard Ring | Protection Feature: | Anti-static |
---|---|---|---|
Color: | Can Option | Type: | Wafer Cassette |
Size: | 6 Inch | Character: | Reusable |
Highlight: | 6 Inch Expansion Ring Carrier,5-slot Expansion Ring Carrier,LED Wafer Expansion Frame Cassette |
6 Inch 5 Solts Semiconductor Wafer Carrier For Inspection And Transportation In Wafer Fabrication
Product Description:
In chip encapsulation, there is a process is to expand the crystal, the whole sheet of wafer film uniform expansion, so that attached to the surface of the film tightly arranged grains pull apart, in order to facilitate solid crystal.
At this time, the expansion of good chip storage is also particularly important, generally many companies are the choice of wafer expansion cassette to its storage turnover, to ensure that just expanding the good products from the outside world, and can enhance the efficiency of the workshop production.

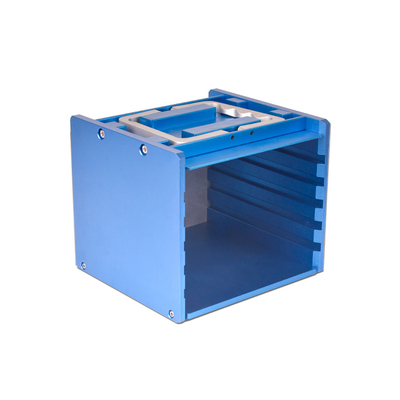

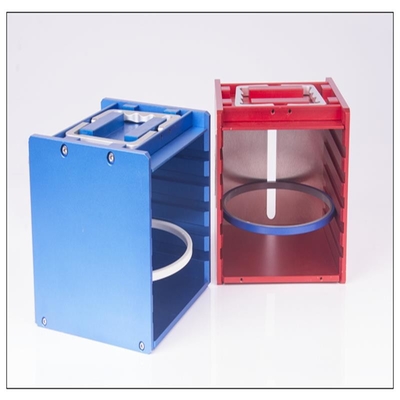

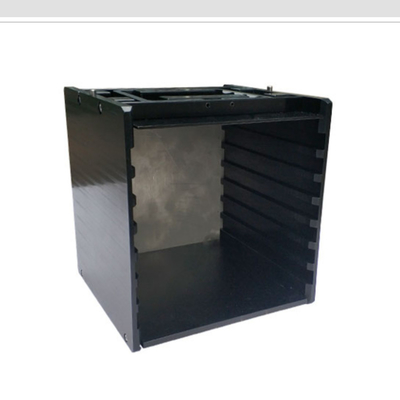

The wafer expanding cassette is made of 6061 aluminum profile through cnc precision machining, the overall firmness and durability, high verticality and flatness, the surface after anodic oxidation treatment, which can make the wafer expanding basket surface groove smooth burr-free, corrosion-resistant, beautiful and generous appearance, longer service life, and better protection of products in the process of use.
Why choose our metal 6-inch 5-Slot Furnace Boat Carrier?
In the semiconductor wafer fabrication process, the 6-inch, 5-channel ring spreader carrier plays a critical role.
This specialized carrier is made of high quality stainless steel or aluminum alloy, precision machined and surface treated to meet the demanding cleanliness and corrosion resistance requirements of advanced processes.
Key features include:
(1)Size specification.
Outer diameter approx. 150mm, height approx. 60-80mm
5 specially designed slots for loading 6” wafers
(2)Excellent mechanical properties.
High-strength load capacity, can withstand vibration shock
High temperature resistance, can withstand up to 300 ℃ above the thermal process
(3)Cleanliness control.
Class 1 cleanliness standard
Surface roughness Ra≤0.3μm, particulate contamination≤0.5μm/cm².
(4)Friendly automation.
Equipped with humanized handle design, convenient for workers to operate.
Can be seamlessly connected with automated equipment to improve production efficiency.
(5)Traceability.
Printed with QR code or RFID tag on the surface of the basket.
Supports digital management for improved production control
(6)Affordability.
Durable metal material, can be reused many times
Technical Parameters:
Product Name | MetalCassette |
Product Size | 161.8(L)x151(W)x140(H)mm |
Capacity | 25PCS |
Component Material | 6061 Aluminum Plate |
Starting position | 22 mm |
Product process | CNC precision machining/sandblasting oxygen (optional color) |
Other Specification:
3 inch | 83*92*140.2 |
4 inch | 108*116*142 |
5 inch | 135*143.5*142.6 |
6 inch | 170*168*142.6 |
7 inch | 215*219*142.6 |
Slot width MM:1.6 Slot spacing MM:4.76
Certificates and patents:
1.Cleanliness Certificate
2.Certificate of Material Conformity
3.Manufacturing process certification
4.Measurement test certificate
we are fully equipped to provide semiconductor companies with high-quality packaging and transportation services of professional strength.
I believe that through our professional certificates and successful cases, you will have trust in our service quality and reputation.
We look forward to establishing a long-term and stable cooperative relationship with you, and bringing you greater success in your business.
Standard Packing and Shipping:
(1)Adopt moisture-proof, shock-proof and pressure-proof packing method.Choose sturdy cartons, wooden boxes or iron drums and other packaging containers
Fill the interior with cushioning materials such as foam, bubble bags,Label the outer package with product information, delivery address, etc.
(2).Choose a regular international logistics company.
According to the mode of transportation (sea, air, etc.) to do a good job of storage, loading and unloading
Maintain temperature and humidity control throughout the transportation of goods
Properly handle the return and exchange of goods due to transportation damage.
