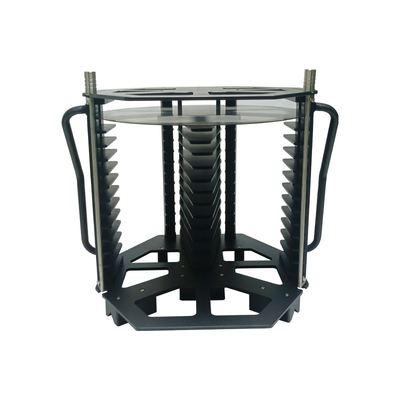

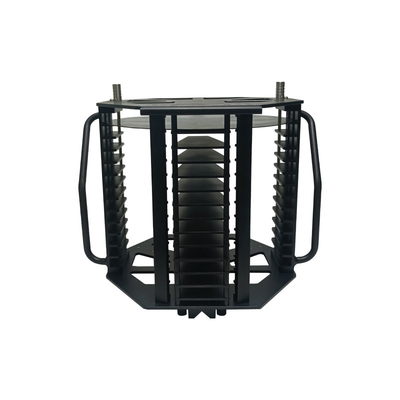

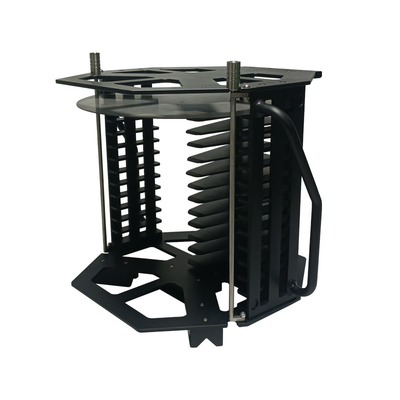

Custom Special Shape 12 Inch 25 Slot Metal Wafer Carrier Cassette Series Products Are Used In Wafer Production

Custom Special Shape 12 Inch 25 Slot Metal Wafer Carrier Cassette Series Products Are Used In Wafer Production

Built for precision and durability, our metal frame wafer cassettes offer robust support for secure wafer transfer and storage.

This metal cassette is designed for/with: Frame and Frame Shipper, Handling.

(1) Wafer Type: 12-inch wafers

(2) Slot Qty: 25 slots (12 slots also available)

(3) Max Bake Temp: 450° C

(4) H Bar included: Yes

(5) Loading method: Robotic or Push Transfer loading

(6) Fabrication material: Stainless Steel 316L

Metal Frame Wafer Cassette antistatic material, lightweight, air-tight design for wafer protection.

Protects monolithic wafer frames from impact. Used for process-to-process conversion (cannot be used for chemical processes).

Can be engraved upon request and RFID-enabled to track carriers and materials to ensure traceability during production.
Metal Box-Capacity for different semiconductor loading, semiconductors, epitaxial chips, germination chips, wafers, in germination epitaxial solar wafers process, high temperature resistant, can be transferred in the factory.

Applications:

(1) Particle-free, robust, and dimensionally stable design.

(2) SEMI 300mm automation compliant, Automated or manual transfer.

(3) Durable wear-resistant material.

(4) Ergonomic fixed side handle, lightweight design, available in vertical and horizontal.

(5) Secure transportation locking lever.

(6) Lighter than FOUP, Ideal for polyimide bake, BCB cure, copper anneal, as well as other cure processes.

All 316L SST welded, electropolished construction (no screws or fasteners).Dimensions similar to the SEMI standard plastic machined carriers
Temperature: 316L stainless steel is suitable for temperatures up to 760ºC, but the recommended continuous operating temperature without distortion is 500ºC.
Corrosion resistance: 316L stainless steel is superior to 302 and 304 stainless steel in corrosion resistance. It is also resistant to a wide range of industrial chemicals and solvents, including sodium and calcium salts, hypochlorite solutions, phosphoric acid, sulfite solutions, and sulfurous acid.

Technical Parameters:

Certificates and Patents:

(1)  Quality Certification
Hiner-pack Wafer products have passed the ISO9001 quality management system certification.
Obtained CE, RoHS, and other health and environmental protection certificates.
Provide a third-party inspection report to prove the stability of product quality.

(2)  Aluminum alloy material test report
Explain the metal composition, strength, corrosion resistance, and other indicators.

(3)  Export license
Handle export license procedures, such as commodity inspection and customs
Ensure that the products and packaging meet the standard requirements of the exporting countries
Provide a packing list, commercial invoice, and other export documents.

(4)  Other certificates
According to the specific requirements of the destination country, provide the relevant certificates.
Such as UL, REACH, LPC IC, and other environmentally friendly certificates.
Ensure that the products fully meet the regulations and standards of the exporting country.
